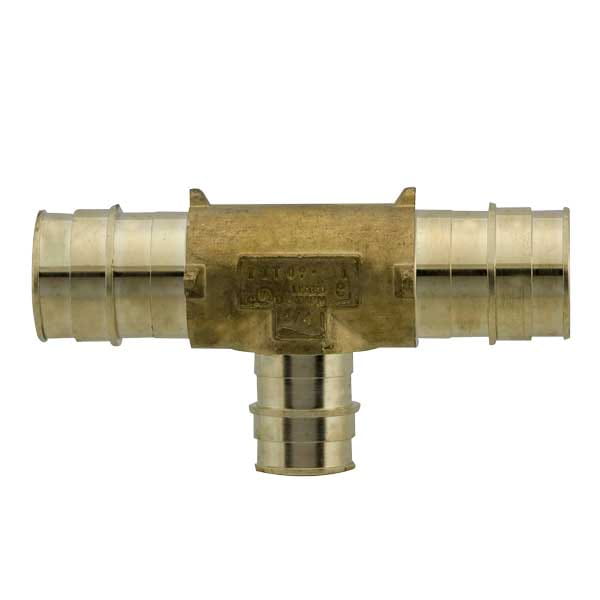

ProPEX LF Brass Reducing Tee, 1" PEX x 3/4" PEX x 1" PEX

Part no.LF4701751
StatusActive

Part information and details

Codes

CodesUPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC

Dimensions

A [frac]1 3/16 inch
A [inch]1.181 inch
B [frac]55/64 inch
B [inch]0.865 inch
C [frac]55/64 inch
C [inch]0.865 inch
D [frac]15/16 inch
D [inch]0.945 inch
E [frac]9/16 inch
E [inch]0.559 inch
F [frac]1 3/16 inch
F [inch]1.181 inch
G [frac]3 55/64 inch
G [inch]3.856 inch
H [frac]2 19/64 inch
H [inch]2.295 inch
I [frac]1 29/64 inch
I [inch]1.46 inch
Weight per UOM [lbs/UOM]0.4 lbs/uom

Listings

ListingscNSFus-pw-fs-G|ICC-ES-PMG|IAPMO 3558|U.P.Code

Standards

StandardsNSF-372|ASTM F877|ASTM F1960|CSA B137.5|UL 1821|NSF-61|NSF-14

Technical Data

End Size 1 [inch|mm]1"
End Size 2 [inch|mm]3/4"
End Size 3 [inch|mm]1"
End Type 1ProPEX
End Type 2ProPEX
End Type 3ProPEX
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]180 °f
Operating Temperature 3 [°F]200 °f
Prop 65 label required?Yes
Submittal Subcomponent MaterialC69300 Brass
