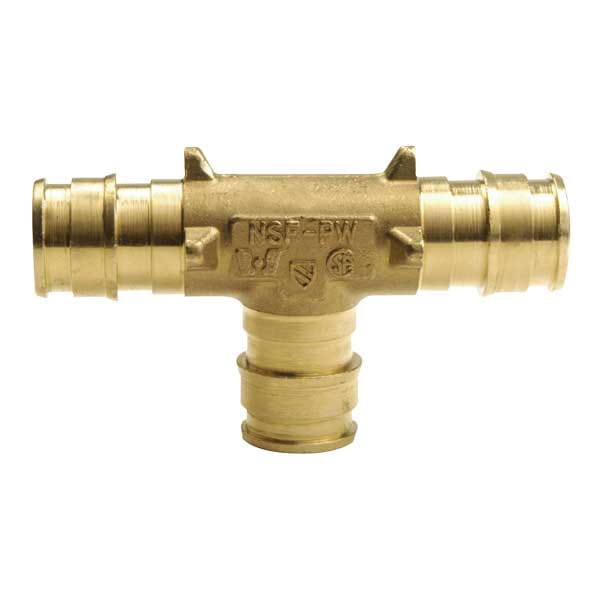

ProPEX LF Brass Tee, 3/4" PEX x 3/4" PEX x 3/4" PEX

Part no.LF4707575
StatusActive

Part information and details

Codes

CodesUPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC

Dimensions

A [frac]15/16 inch
A [inch]0.945 inch
B [frac]11/16 inch
B [inch]0.689 inch
C [frac]11/16 inch
C [inch]0.689 inch
D [frac]15/16 inch
D [inch]0.945 inch
E [frac]13/32 inch
E [inch]0.406 inch
F [frac]15/16 inch
F [inch]0.945 inch
G [frac]3 17/64 inch
G [inch]3.268 inch
H [frac]1 25/32 inch
H [inch]1.789 inch
I [frac]1 13/64 inch
I [inch]1.2 inch
Equivalent length branch [ft]4.91 ft
Equivalent length through [ft]0.8 ft
Weight per UOM [lbs/UOM]0.4 lbs/uom

Listings

ListingscNSFus-pw-fs-G|ICC-ES-PMG|IAPMO 3558|U.P.Code

Standards

StandardsNSF-372|ASTM F877|ASTM F1960|CSA B137.5|UL 1821|NSF-61|NSF-14

Technical Data

Cv Branch9.4
Cv Through19.6
End Size 1 [inch|mm]3/4"
End Size 2 [inch|mm]3/4"
End Size 3 [inch|mm]3/4"
End Type 1ProPEX
End Type 2ProPEX
End Type 3ProPEX
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]180 °f
Operating Temperature 3 [°F]200 °f
Material groupLF Brass
Prop 65 label required?Yes
Submittal Subcomponent MaterialC69300 Brass
