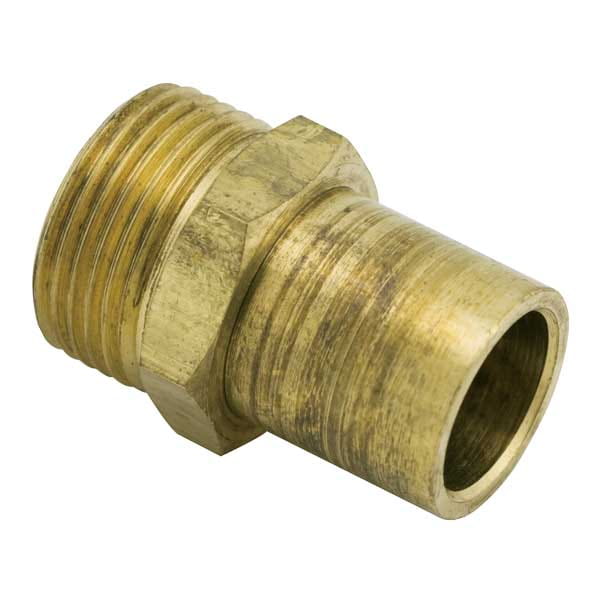

QS-style Copper Fitting Adapter, R25 X 3/4" Copper (for 3/4" and 5/8" tubing only)

Part no.A4342575

Find a distributor

Availability of specific products varies by distributor.

Part information and details


A [frac]15/16 inch
A [inch]0.935 inch
B [frac]19/64 inch
B [inch]0.3 inch
C [frac]21/32 inch
C [inch]0.657 inch
D [frac]1 9/16 inch
D [inch]1.557 inch
E [frac]1 57/64 inch
E [inch]1.892 inch
F [frac]1 3/8 inch
F [inch]1.375 inch
G [frac]25/32 inch
G [inch]0.778 inch
H [frac]11/16 inch
H [inch]0.687 inch
Weight per UOM [lbs/UOM]0.28 lbs/uom


StandardsR25: ISO 228-G 1"|ASTM F877

Technical Data

End Size 1 [inch|mm]1"
End Size 2 [inch|mm]3/4"
End Type 1ISO 228-G
End Type 2Sweat
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °F
Operating Temperature 2 [°F]180 °F
Operating Temperature 3 [°F]200 °F
Material groupBrass
Prop 65 label required?Yes
