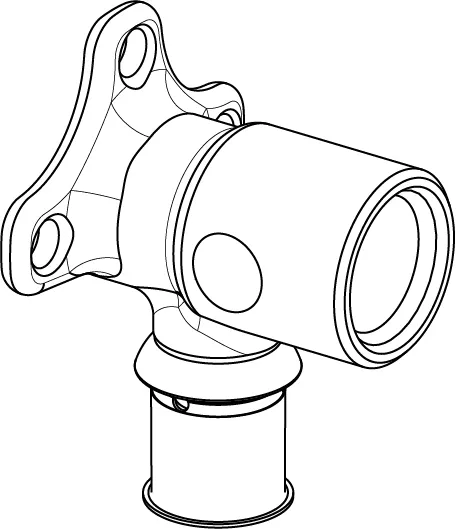

Uponor S-Press PLUS tap elbow long L

- Unique press indicator
- Fast 3-step installation (press without bevel)
- Innovative QR code for immediate digital access
- For either on-wall or in-wall installation, or attachment to the Uponor Smart Aqua mounting angles and plates, with rotation protection
- Thread acc. to BS EN ISO 228-1

Product wishlist

1070644

Uponor S-Press PLUS tap elbow long L 16-Rp1/2"FT

1070645

Uponor S-Press PLUS tap elbow long long 20-Rp1/2"FT

1120119116 B

Uponor Installation Report MLC leak test report TW water (1120119)

1120120127 B

Uponor Installation Report MLC flushing protocol TW water (1120120)

1120118110 B

Uponor Installation Report MLC leak test report TW air-gas (1120118)

1120121127 B

Uponor Installation Report MLC leak test report HC water (1120121)

11199666 KB

Uponor Technical Information MLC tap water and heating (1119966)

10623011 KB

Uponor Installation Manual Uni Pipe PLUS (1062301)

Application

- Tap water: The permanent operating temperature ranges from 0°C to 70°C at a maximum permanent operating pressure of 10 bar. The short-term malfunction temperature is 95°C for a period of 100 hours in the operating life time.
- Heating: The permanent operating temperature ranges up to 80°C at a maximum permanent operating pressure of 10 bar. The short-term malfunction temperature is 100°C for a period of 100 hours in the operating life time.
- Unless specified otherwise, male and female threads acc.to EN 10226-1.
