With Uponor Combi Port and Aqua Port

Build on new ways for­ energy-efficient buildings

Follow us to the future of domestic hot water generation and heat distribution

Buildings are responsible for at least 40 % of global energy consumption and over a third of greenhouse gas emissions. That’s why new ways of enhancing energy efficiency in buildings are vital in combating human-induced climate change. Our decentralised Combi Port and Aqua Port heat interface units make a key contribution by supplying on-demand, energy-efficient hydronic heating and cooling as well as hygienic hot water.

It's time for a turnaround

  • New generation of energy-efficient domestic hot water generation and heating/cooling distribution
  • Hygienic hot water generation on demand to avoid legionella growth
  • Individually developed & prefabricated heat interface units

Your benefits of choosing decentralised domestic hot water generation and heat distribution

Uponor standard portfolio for fast delivery

Uponor Combi Port Base

Heat interface unit for radiator application

  • For small apartment buildings (up to 5 flats per riser)
  • Radiator application
  • In-wall/on-wall cabinets
  • Available in 15 and 19 liters
  • Together with additional accessory, also suitable for UFH application

Uponor Combi Port PRO RC

Heat interface unit for radiator application

  • For mid-size and large apartment buildings
  • In-wall/on-wall cabinets
  • Available in 15 and 19 liters
  • Available with return temperature limiter

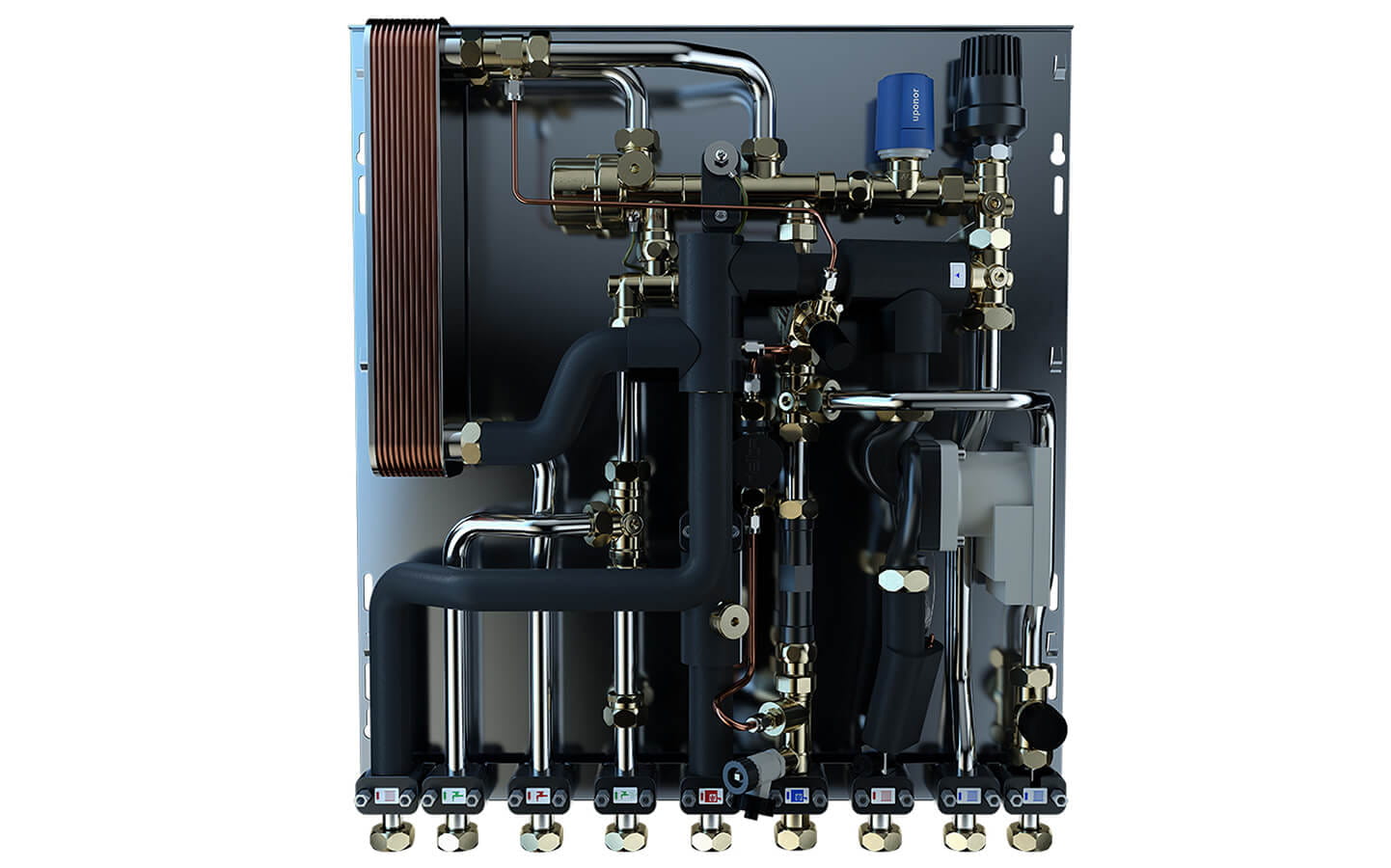

Uponor Combi Port PRO UFH

Heat interface unti for underfloor heating application

  • For mid-size and large apartment buildings
  • In-wall/on-wall cabinets
  • Available in 15 and 19 liters
  • Available with second unmixed heating circuit (can be used in combination with decentralised hot water generation unit

Uponor solutions for special project requirements

Uponor Combi Port B1000

Hot water generation with a radiator or underfloor heating connection

  • Fully modular platform
  • Module for radiators, underfloor heating and heating/cooling
  • In-wall/on-wall cabinets
  • Available in 12,15,17 and 19 litres

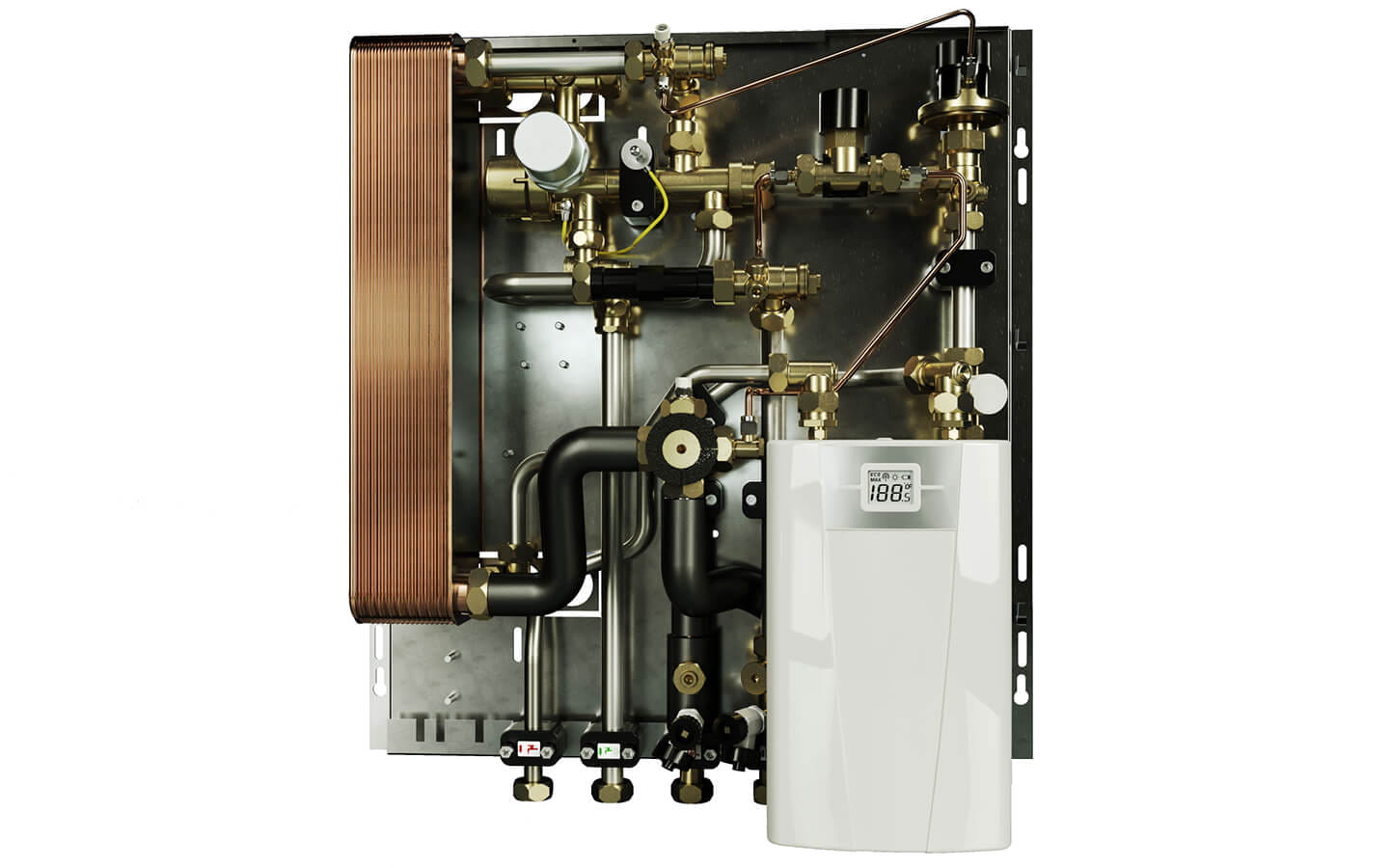

Uponor Combi Port B1000 HY

Hybrid version for low-temperature systems

  • Min. supply temperature 35-38°C, constant or flexible up to 60°C
  • Simple hydraulics
  • Direct underfloor heating feed with no mixing circuit required
  • Drinking water temperature adjustable to users’ requirements

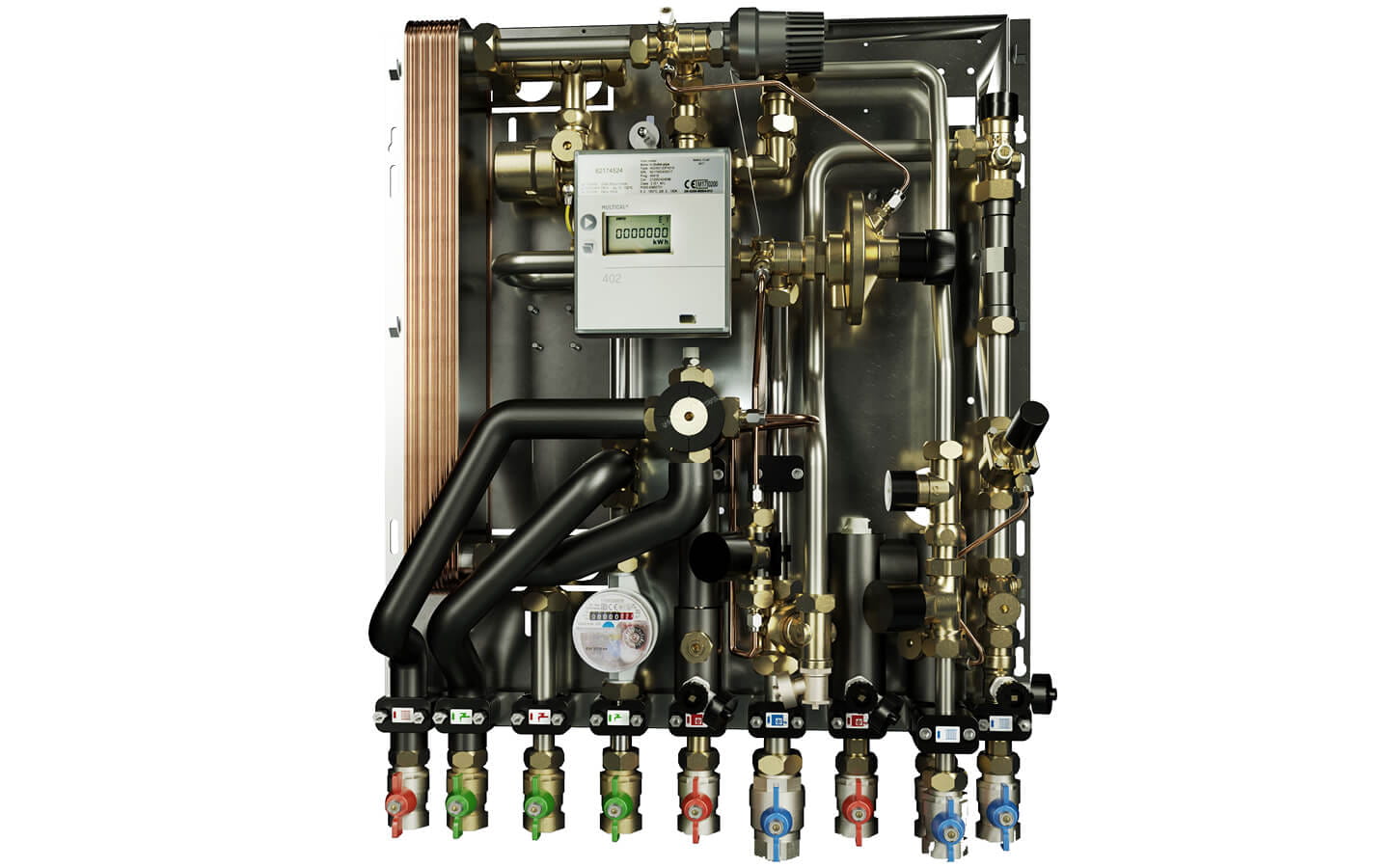

Uponor Combi Port B1000 3P

Three-pipe station for more efficient heat pump systems

  • Two separate supply lines for heating and domestic hot water generation; one common return
  • Simple hydraulics
  • Secure hygienic domestic hot water in combination with heat pumps
  • Higher COP of the heat pump

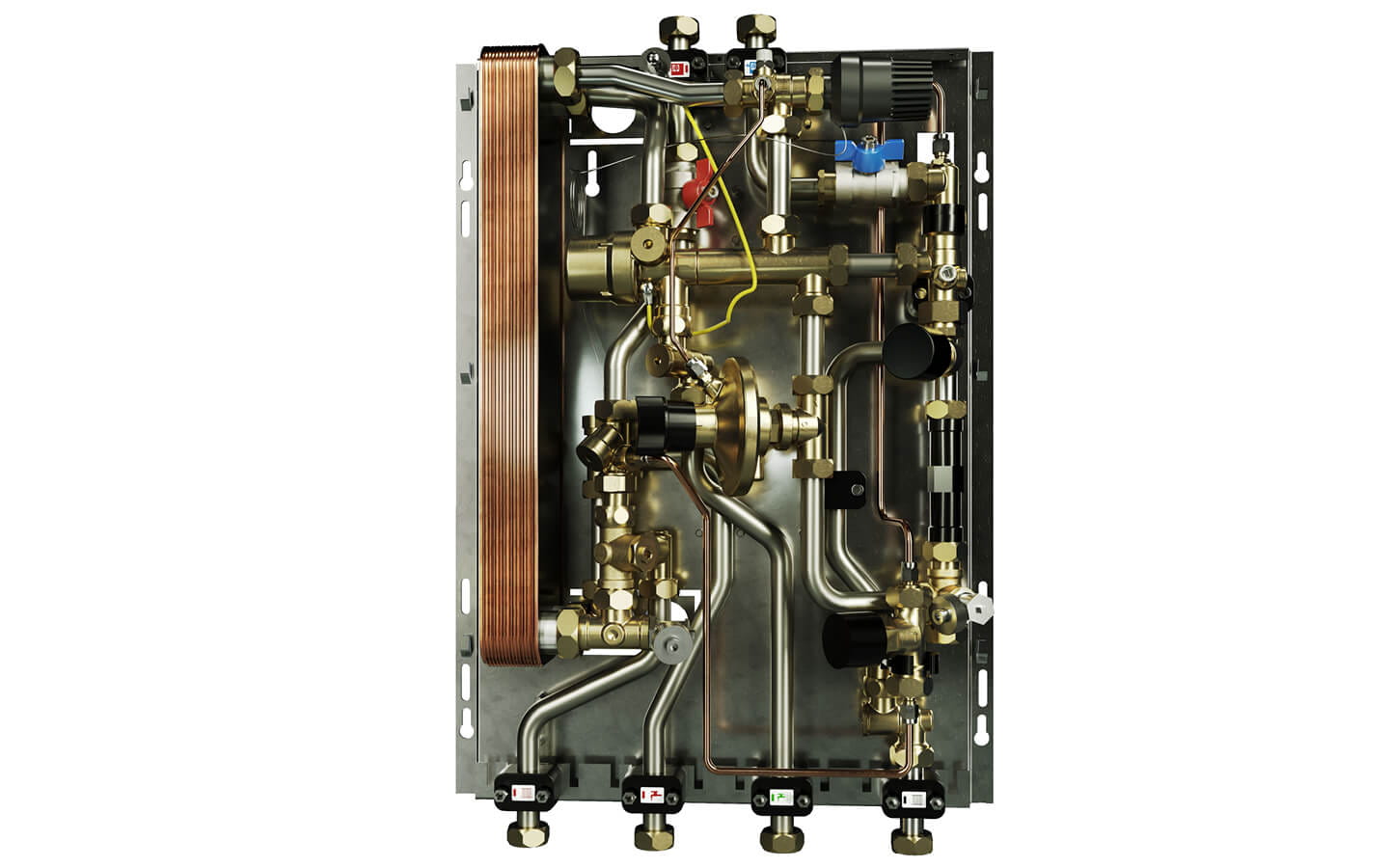

Uponor Combi Port T1000

Ideal for replacing gas-fired boilers in apartments

  • Quick and easy installation using existing drinking water and heating connections
  • Reduced maintenance and operational costs

Uponor Aqua Port S1000

Domestic hot water generation

  • Hygienic and reliable heating of drinking water
  • Combines with all commonly used heating systems
  • Compact design enables system to be installed in alcoves and shafts for distribution lines and risers

Watch the video to learn more about the system functioning

The Uponor Combi Port and Aqua Port only require a heating supply and return to be connected to a centralised heating system. Unlike traditional centralised systems, the decentralised solution does not need a hot water tank or domestic hot water distribution and circulation system.

Build on our service support

Do you want to learn more about energy savings you achieve while choosing the decentralised domestic hot water generation and heating distribution?

Uponor provides extensive Building Information Modelling (BIM) files library.
Improve your project efficiency through collaboration and the coordination of information and resources.

Look up the range of Port products

Uponor Comfort Port

  • Radiant heating manifolds
  • Fully assembled and pre-wired configured according to customer specifications
  • Delivered ready-to-install to the building site

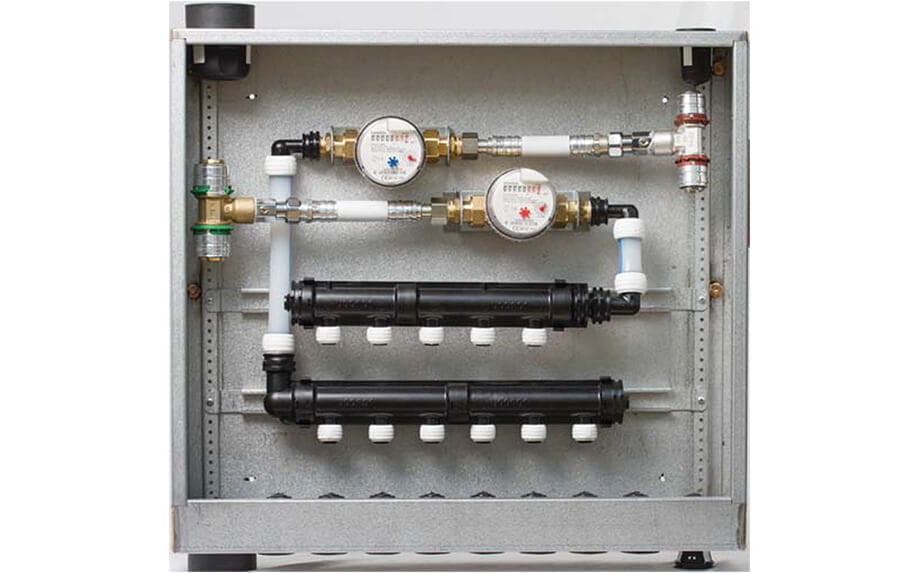

Uponor Ready Port

  • Plumbing and radiant heating manifolds
  • Fully assembled in a watertight cabinet delivered ready-to-install to the building site

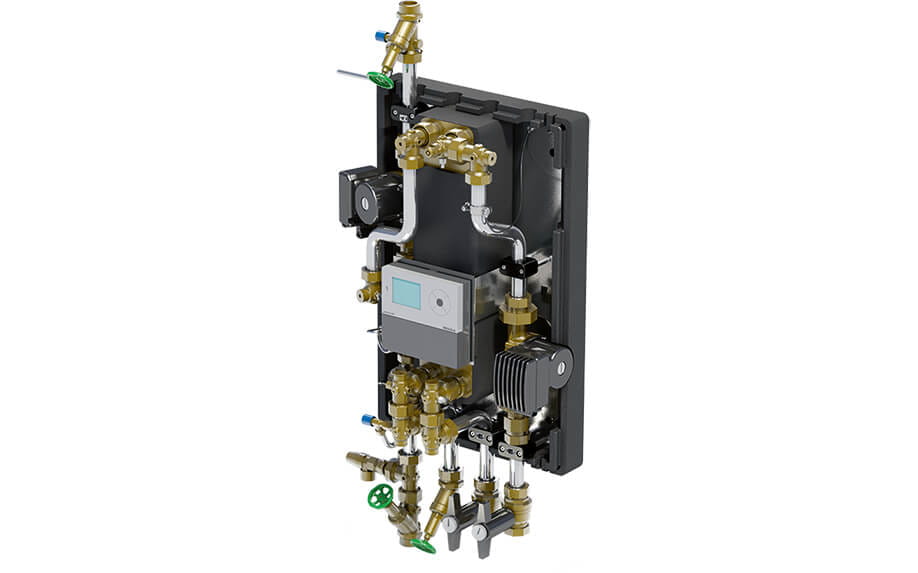

Uponor Aqua Port Central

  • Central fresh domestic hot water stations
  • For private homes, hotels and healthcare

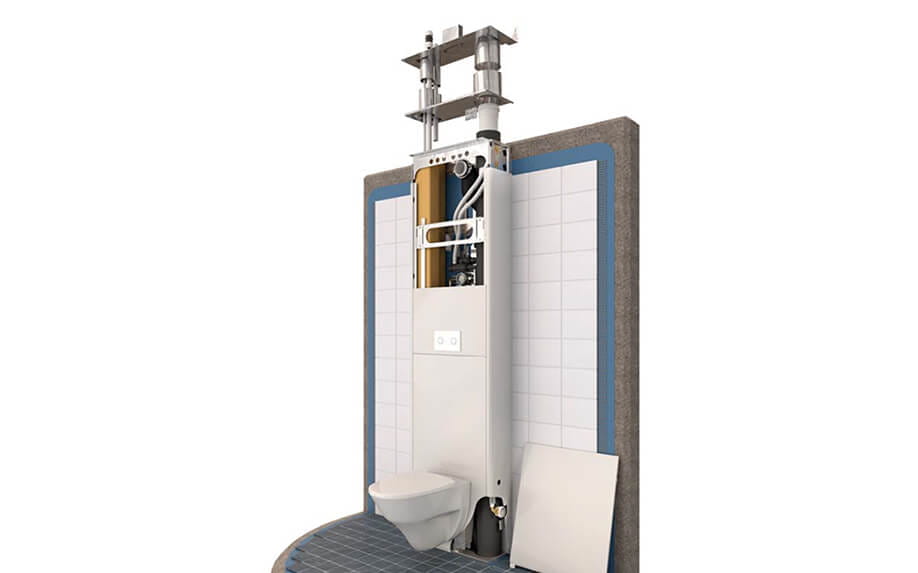

Uponor Reno Port

  • Prefabricated module with integrated toilet, plumbing and waste water connections
  • For residential high-rise renovation

Uponor Riser Port

  • Fully prefabricated technical walls
  • Ideal for modular construction
  • Including all plumbing, heating, ventilation, waste water and electrical installations
  • For new-build properties and apartment renovation

Look up or download our brochures to find out more about Uponor Ports

Case study for prefabricated heat interface units

Case study for prefabricated heat interface units

Read why Mc Carthy and Stone builds on Uponor

PDF 1 MB
Build on new ways for energy-efficient buildings

Build on new ways for energy-efficient buildings

Sales folder for Uponor Combi Port and Aqua Port

PDF 1 MB
Compact decentralized domestic hot water at single outlets

Compact decentralized domestic hot water at single outlets

Sales folder for Uponor Aqua Port Compact

PDF 7 MB
Uponor technical information Combi Port and Aqua Port

Uponor technical information Combi Port and Aqua Port

Planning guidelines for installation of heating and plumbing systems with heat interface units

PDF 12 MB
