Uponor Combi Port E

Full electronic heat interface unit

Full electronic heat interface unit Combi Port E

As our first full electronic heat interface unit, the Combi Port E with an intelligent control automatically adapts to all requirements. Designed as a complete solution, it takes convenience, hygiene and energy efficiency to a new level. Combi Port E revolutionises complete systems for prefabricated building projects. With adaptive heating, it ensures maximum convenience, minimises energy consumption with the Eco mode and prevents the drinking water from becoming contaminated due to its hygienic design.

Application areas

plumbing installation Up to 16 bar operating pressure

heating water icon Underfloor heating

Comprehensive portfolio

Combi Port E is available in 2 output sizes of 20 l/min and 25 l/min (PWH 50°C and flow temp. 65°C) both with copper-soldered heat exchangers or as VacInox version.

Uponor Combi Port E is the new standard for heat interface units!

Start with Augmented Reality experience

Get to know Combi Port E in the new 3D dimension

Follow the steps below and get a glimpse into the future:

1. Scan the QR code with your smartphone or tablet
  combi port e qr code for augmented reality

2. Click on "Start" or AR symbol (on the right hand side of the product image)

  Ecoflex VIP Augmented reality

3. Place the product on any surface, zoom in and out, move it around
Augmented Reality combi port e

Combi Port E convinces when it comes to heating and hot water

Full electronic heat interface unit Combi Port E in detail

Components

  1. Valve
  2. Adapters for water meter
  3. Cold water dirt collector
  4. Cold water home outlet
  5. Servo motor
  6. Bypass valve
  7. Injection for underfloor heating
  8. Heat meter adapter
  9. Primary dirt collector
  10. Draining
  11. Second unmixed heating circuit
  12. EPP housing
Combi Port E with numbered parts

Simple operation and visualisation with the Combi Port E app

Combi Port E App Screens

Advantages of the app

  • Well-laid out and large display
  • Live display of all values (volume flow, temperature)
  • App works offline
  • Interface to the Combi Port E controller
  • Commissioning assistant and protocol can be sent by email
  • Settings of a Combi Port E can be copied to other devices

Look up or download brochures for Uponor Combi Port E

Uponor Combi Port E sales folder

Uponor Combi Port E sales folder

Build on Uponor with Combi Port E heat interface unit

PDF 2 MB

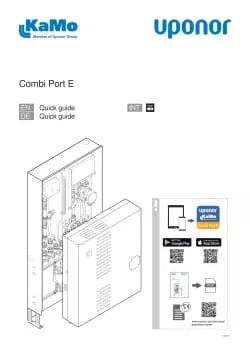

Combi Port E INT 1096400 202003

Combi Port E INT 1096400 202003

Quick guide

PDF 2 MB
Uponor Combi Port E

Uponor Combi Port E

Installation and operation manual

PDF 5 MB

Look up the range of Port products

Uponor Comfort Port

  • Radiant heating manifolds
  • Fully assembled and pre-wired configured according to customer specifications
  • Delivered ready-to-install to the building site

Uponor Ready Port

  • Plumbing and radiant heating manifolds
  • Fully assembled in a watertight cabinet delivered ready-to-install to the building site

Uponor Aqua Port Central

  • Central fresh domestic hot water stations
  • For private homes, hotels and healthcare

Uponor Reno Port

  • Prefabricated module with integrated toilet, plumbing and waste water connections
  • For residential high-rise renovation

Uponor Riser Port

  • Fully prefabricated technical walls
  • Ideal for modular construction
  • Including all plumbing, heating, ventilation, waste water and electrical installations
  • For new-build properties and apartment renovation
