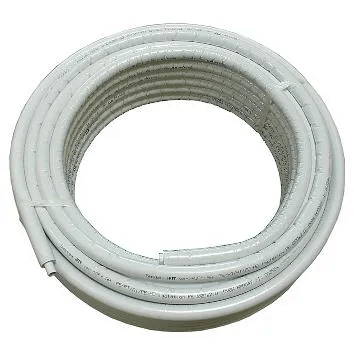

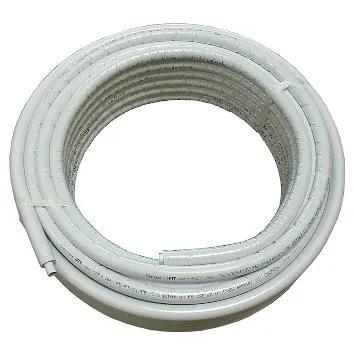

GF iFIT pipe insulated S6
- Description: in coils- Material: PE-RT/AL/PE-RT (white)- Insulation: W/mK 0.035- PN 16 at 20°C
Item details
1151287 / - / -
GF iFIT pipe insulated S6 16-2.0 50m 6mm
1151288 / - / -
GF iFIT pipe insulated S6 20-2.0 50m 6mm
Documents
Technical manuals
Approval Certificate
Approval Certificate
105 B0000122202
GF JRG CER iFit SYS MECH ABS 25-0231193-PDA Master EN (0000122202)
Approval Certificate
566 B0000115588
GF JRG CER iFit SYS MECH BV 46408_D0 BV Master EN (0000115588)
Approval Certificate
1 KB0000115590
GF JRG CER iFit SYS MECH LR LR2023631TA Master EN (0000115590)
About
Specification
- The iFIT system is subject to constant inspection by internal and external bodies.- These inspections range from quality assurance during production to ISO certification for- environmental and process safety. The iFIT system meets the requirements for the most- important applications in the building technology and is subject to constant monitoring- by the licensing offices for drinking water and heating installations on land and sea.
Application
- Application area Cold and hot water, HVAC, greywater- - Installation Surface and flush-mounted pipes, pipe-in-pipe technology
Certification
- SVGW- DVGW- ÖVGW
Product drawings

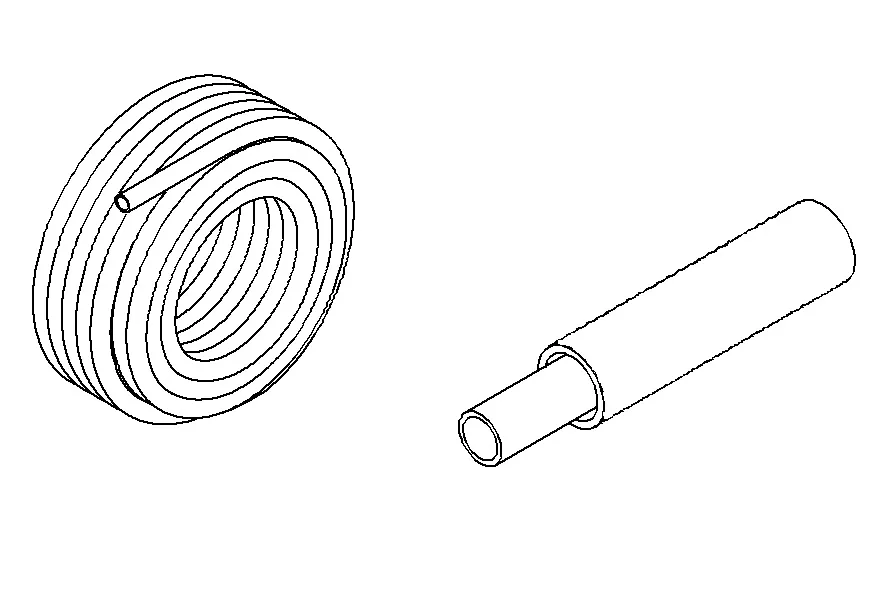

Label drawings

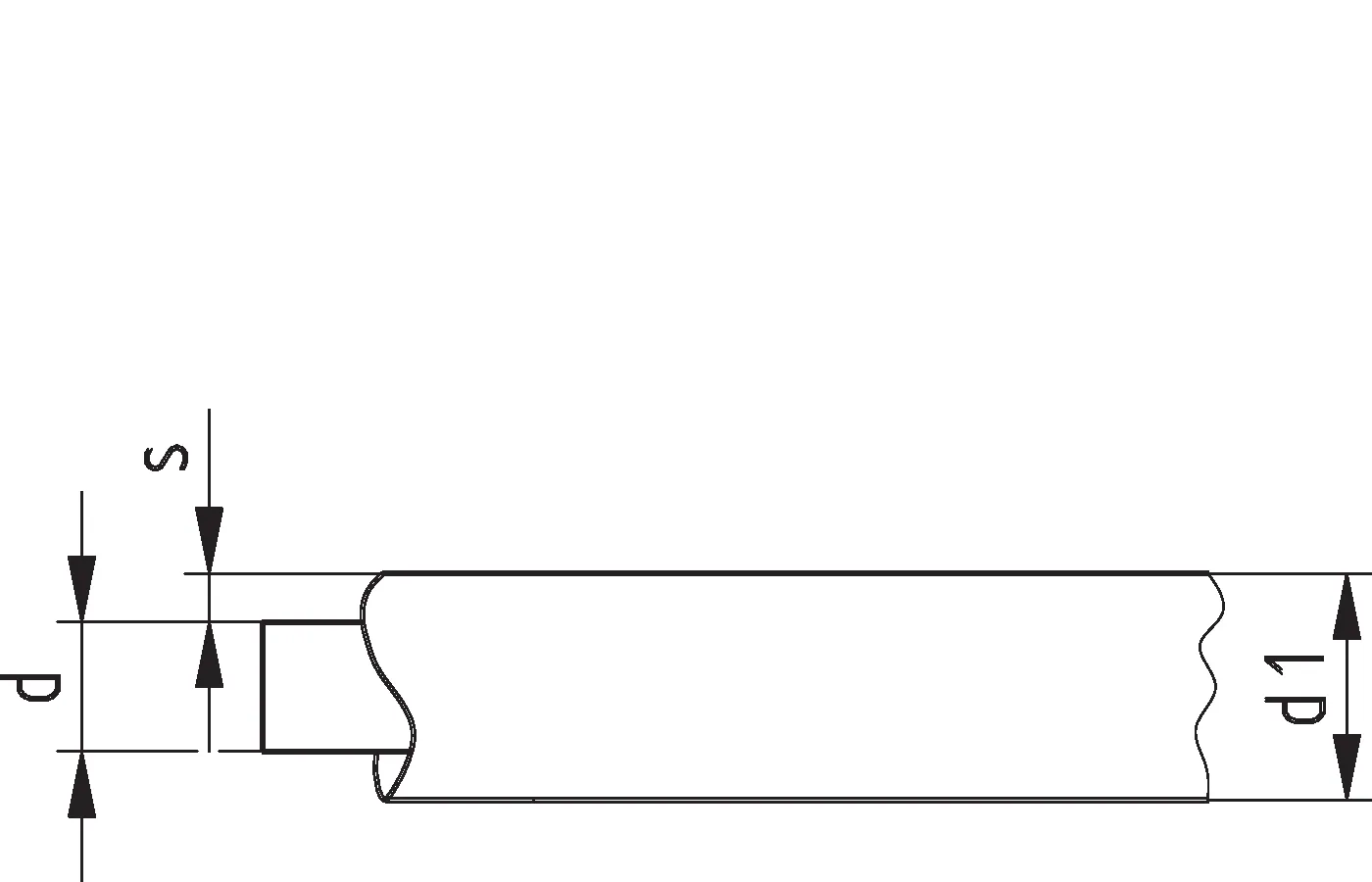

Z-drawing
