Uponor

Uponor Uni-C plated, with valves L, UNI

- Single manifold
- Made of plated brass
- 3/4" MT x FT connections with 1/2" MT outlets
- C/c 38 mm
- Valves on each circuit
- Delivered with loop labelling discs
- Manifold adapters for pipe connection have to be ordered separatelly
- Manifolds can be joined to make the required number of ports.

Uponor Uni-C plated, with valves L, UNI

1002280

Uponor Uni-C plated, with valves L, UNI G3/4"MT/FT 2XG1/2"MT c/c38mm

Qty 1 [-]6
Qty 2 [-]30
UOMpce
d [mm]
di [mm]
L [m]
s [mm]

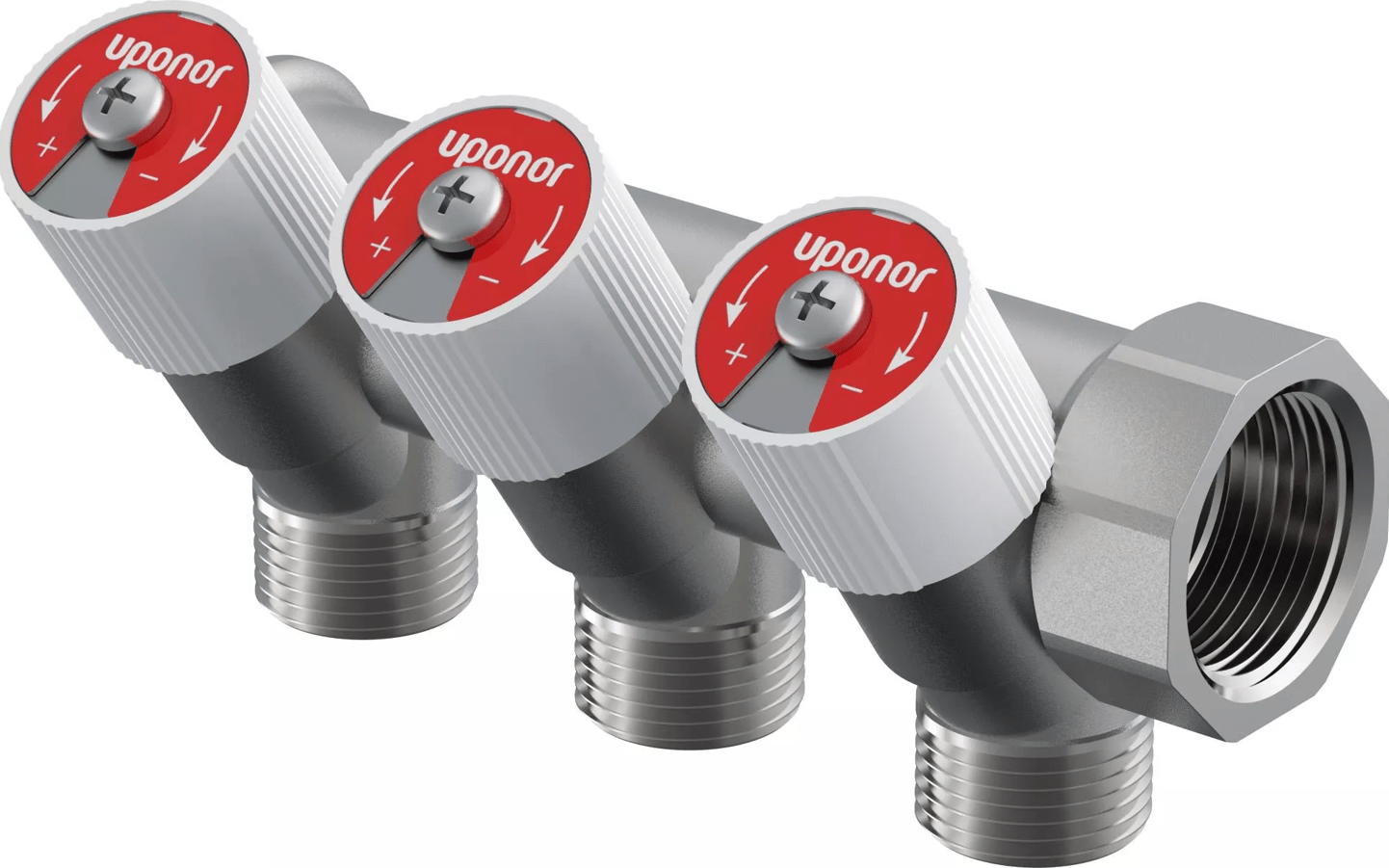

1002281

Uponor Uni-C plated, with valves L, UNI G3/4"MT/FT 3XG1/2"MT c/c38mm

Qty 1 [-]4
Qty 2 [-]40
UOMpce
d [mm]
di [mm]
L [m]
s [mm]

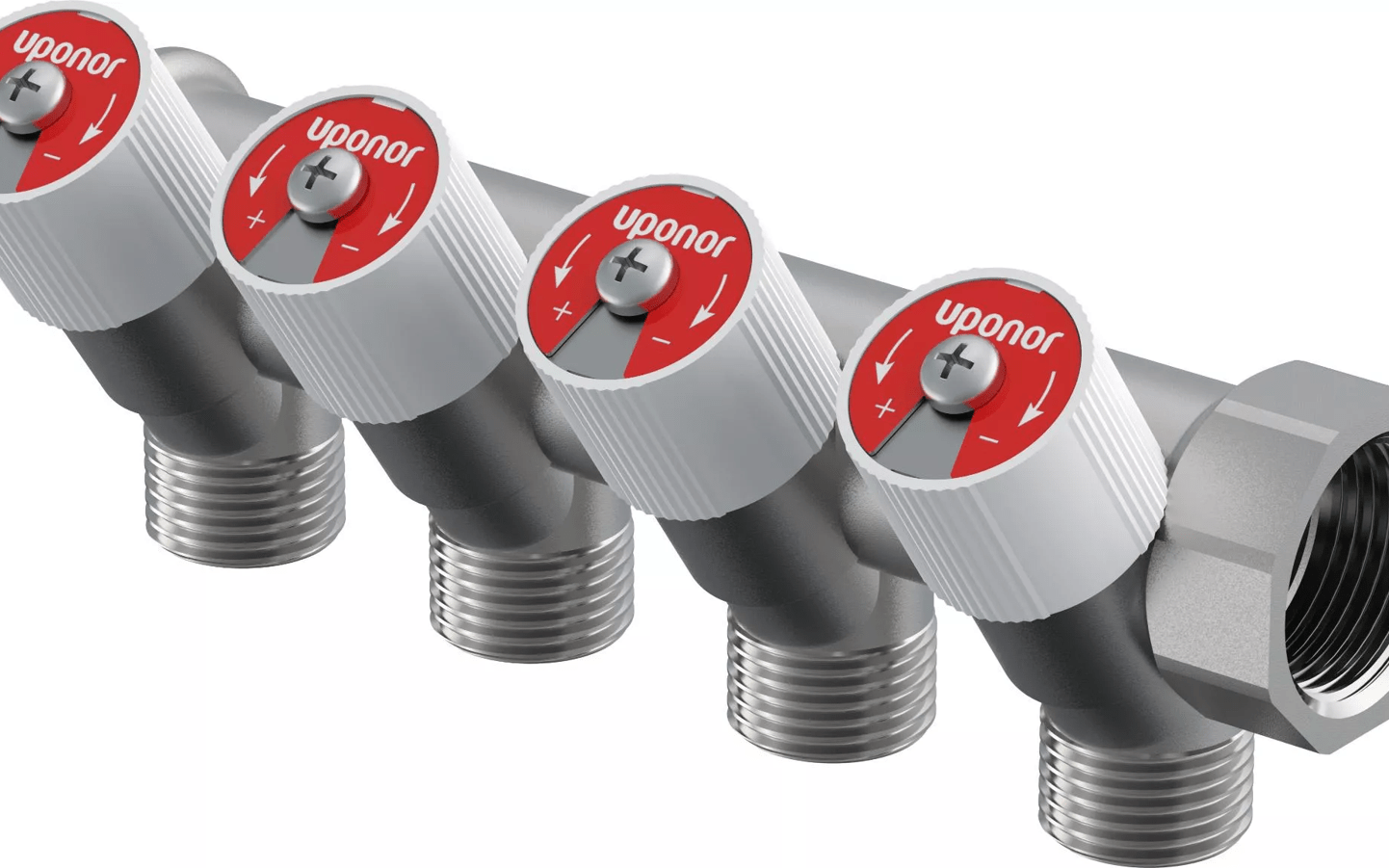

1002282

Uponor Uni-C plated, with valves L, UNI G3/4"MT/FT 4XG1/2"MT c/c38mm

Qty 1 [-]4
Qty 2 [-]40
UOMpce
d [mm]
di [mm]
L [m]
s [mm]
