Uponor Vario S manifold FM
- Supply beam with flowmeters for balancing and shutoff, with memory ring- Return beam with valves for shutoff, with hand caps
Item details
1140833 / - / -
Uponor Vario S manifold FM 2xG3/4 Euro - G1
1140834 / - / -
Uponor Vario S manifold FM 3xG3/4 Euro - G1
1140835 / - / -
Uponor Vario S manifold FM 4xG3/4 Euro - G1
1140836 / - / -
Uponor Vario S manifold FM 5xG3/4 Euro - G1
1140837 / - / -
Uponor Vario S manifold FM 6xG3/4 Euro - G1
1140838 / - / -
Uponor Vario S manifold FM 7xG3/4 Euro - G1
1140839 / - / -
Uponor Vario S manifold FM 8xG3/4 Euro - G1
1140840 / - / -
Uponor Vario S manifold FM 9xG3/4 Euro - G1
1140841 / - / -
Uponor Vario S manifold FM 10xG3/4 Euro - G1
1140842 / - / -
Uponor Vario S manifold FM 11xG3/4 Euro - G1
1140843 / - / -
Uponor Vario S manifold FM 12xG3/4 Euro - G1
1140844 / - / -
Uponor Vario S manifold FM 13xG3/4 Euro - G1
1140845 / - / -
Uponor Vario S manifold FM 14xG3/4 Euro - G1
1140846 / - / -
Uponor Vario S manifold FM 15xG3/4 Euro - G1
Documents
Technical manuals
About
Specification
- Made of stainless steel- With integrated valves- Connection right or left with flat sealing- Integrated airvents and fill&drain points in supply and return,- Loop connection G3/4" eurocone- Loop pitch 50 mm- Header pitch 215 mm
Application
- For underfloor-heating and -cooling- Applicable with actuators 1141676 (230V) and 1141677 (24V)- Max. pressure: 6 bar at 60°C
Product drawings
Z-drawing

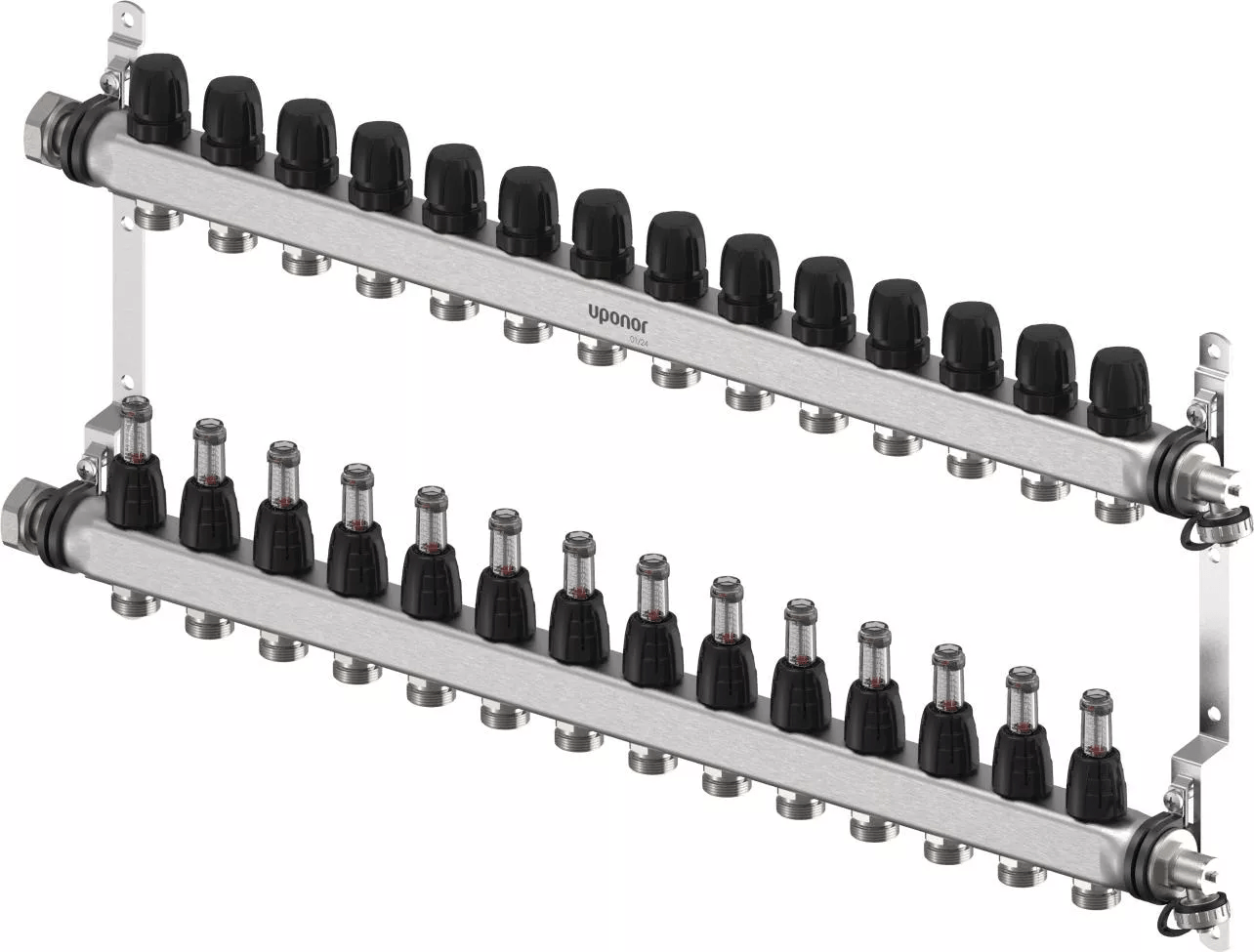

Rendered

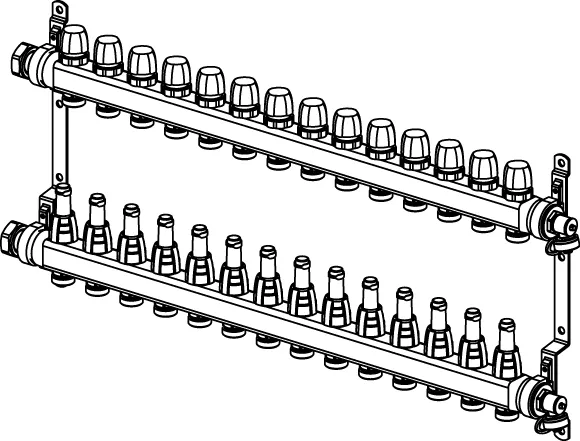

Label drawings
