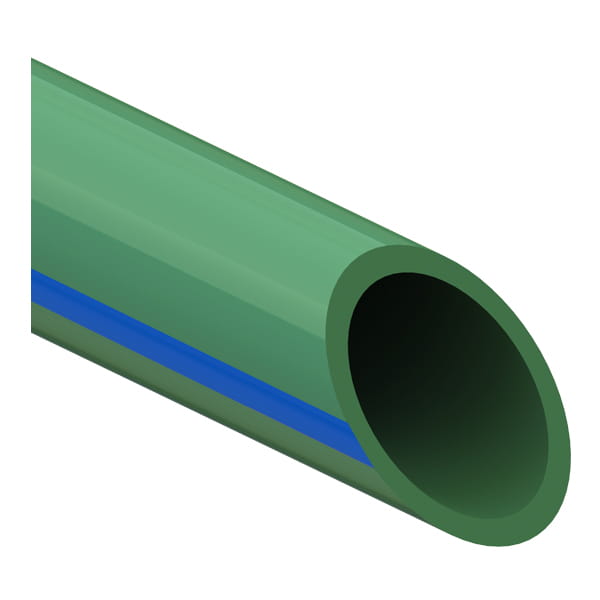

4" Uponor PP-RCT Cold Potable Pipe, SDR 11, 19-ft. straight length
Part no.PR11221940
StatusActive
Find a distributor
Availability of specific products varies by distributor.
Part information and details
Codes
| Codes | UPC|IRC|IPC|NPC of Canada|UMC|CMC|CPC|IMC |
|---|
Dimensions
| Inner diameter pipe [inch] | 4.024 inch |
|---|---|
| Outer diameter pipe [inch] | 4.921 inch |
| Weight per UOM [lbs/UOM] | 49.97 lbs/uom |
Listings
| Listings | ICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775|NSF-51 |
|---|
Standards
| Standards | NSF-61|ASTM E84|ASTM F2389|CSA B137.11 |
|---|
Technical Data
| Operating Pressure 1 [PSI] | 252 psi |
|---|---|
| Operating Pressure 2 [PSI] | 140 psi |
| Operating Pressure 3 [PSI] | 85 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 120 °F |
| Operating Temperature 3 [°F] | 180 °F |
| Linear expansion rate [inch/10°F/100ft] | 1 inch/10°f/100ft |
| Pipe density [lb/ft³] | 0.0565 lb/ft³ |
| SDR-class | 11 |
| Material Service Pipe | PP-RCT |
| Thermal conductivity pipe [BTUin/ft²hrF°] | 1.67 btuin/ft²hrf° |
| Prop 65 label required? | No |
