lf4410500

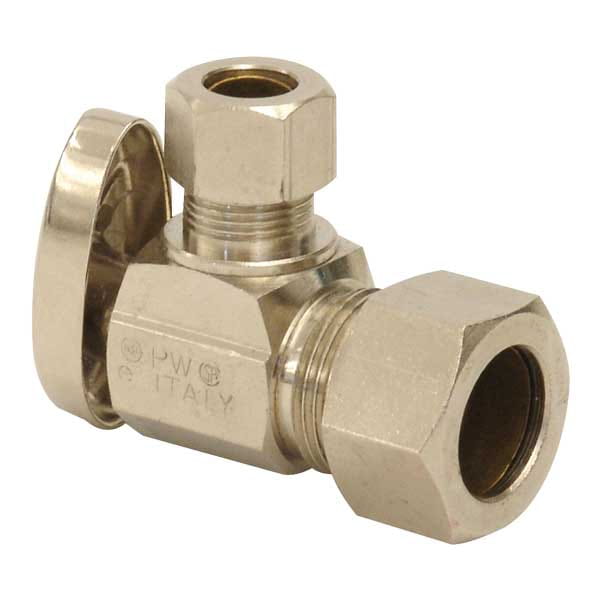

LF Brass Compression Angle Stop Valve for 1/2" PEX

Part no.LF4410500
StatusActive

Part information and details

Codes

CodesUPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC

Dimensions

A [frac]1 15/16 inch
A [inch]1.944 inch
B [frac]1 5/16 inch
B [inch]1.307 inch
C [frac]15/16 inch
C [inch]0.937 inch
Weight per UOM [lbs/UOM]0.25 lbs/uom

Listings

ListingscNSFus-pw-G|U.P.Code

Standards

StandardsNSF-372|ASME A112.18.1|ASTM F877|CSA B125|ASTM F1960|CSA B137.5|NSF-61|NSF-14

Technical Data

End Size 1 [inch|mm]1/2"
End Size 2 [inch|mm]3/8"
End Type 1Compression
End Type 2Compression
Operating Pressure 1 [PSI]145 psi
Operating Temperature 1 [°F]194 °f
Material groupLF Brass
Prop 65 label required?Yes
Material ValveUNS C69300 brass (nickel plated)
