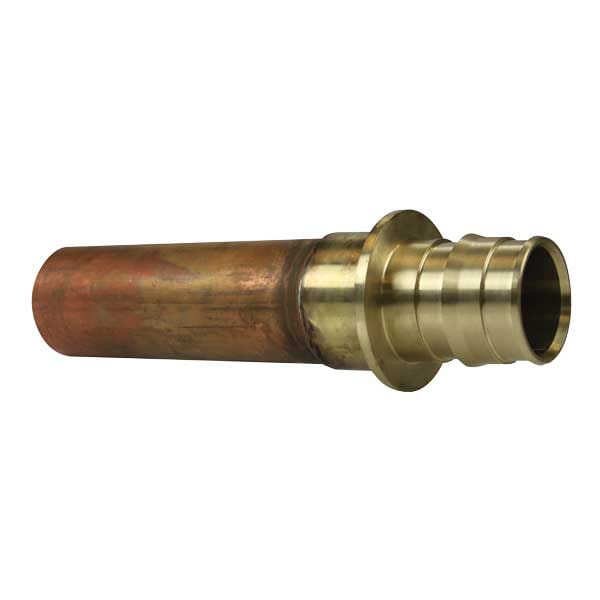

ProPEX LF Copper Straight Stub, 3" PEX LF Brass x 3" Copper

Part no.LF2963030
StatusActive

Part information and details

Codes

CodesUPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC

Dimensions

A [frac]13 43/64 inch
A [inch]13.67 inch
B [frac]3 3/8 inch
B [inch]3.38 inch
C [frac]10 19/64 inch
C [inch]10.29 inch
D [frac]3 51/64 inch
D [inch]3.79 inch
Weight per UOM [lbs/UOM]5.5 lbs/uom

Listings

ListingsIAPMO-ES|ICC-ES-PMG|cNSFus-pw-G|U.P.Code

Standards

StandardsNSF-372|ASTM F877|ASTM F1960|CSA B137.5|NSF-61|NSF-14

Technical Data

End Size 1 [inch|mm]3"
End Size 2 [inch|mm]3"
End Type 1ProPEX
End Type 2Sweat
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]180 °f
Operating Temperature 3 [°F]200 °f
Prop 65 label required?Yes
