PR5571310

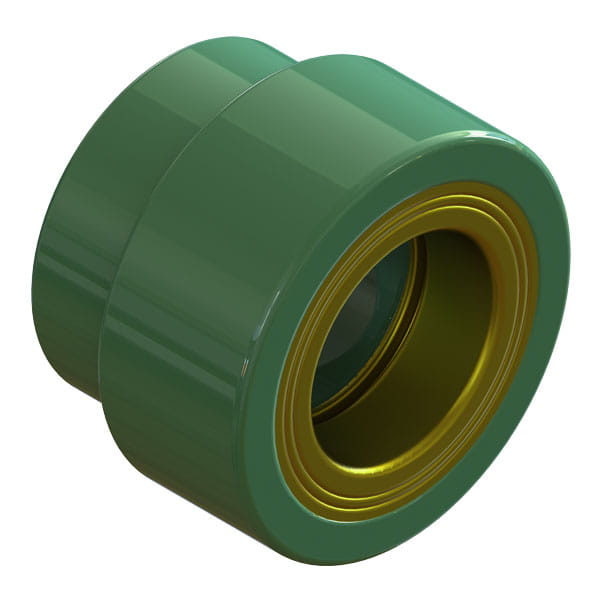

Uponor Brass Female Threaded Adapter, 1 1/4" PP-RCT x 1'' NPT

Part no.PR5571310
StatusActive

Part information and details

Codes

CodesCMC|IMC|UMC

Dimensions

A [frac]55/64 inch
A [inch]0.86 inch
B [frac]61/64 inch
B [inch]0.95 inch
C [frac]11/16 inch
C [inch]0.68 inch
D [frac]2 41/64 inch
D [inch]2.64 inch
E [frac]1 13/16 inch
E [inch]1.81 inch
F [frac]1 5/64 inch
F [inch]1.085 inch
G [frac]17/64 inch
G [inch]0.27 inch
Equivalent length through [ft]1.7 ft
Weight per UOM [lbs/UOM]0.53 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]1-1/4" inch|mm
End Size 2 [inch|mm]1" inch|mm
End Type 1Socket
End Type 2FNPT
Operating Pressure 1 [PSI]340 psi
Operating Pressure 2 [PSI]190 psi
Operating Pressure 3 [PSI]100 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]140 °f
Operating Temperature 3 [°F]180 °f
Prop 65 label required?Yes
