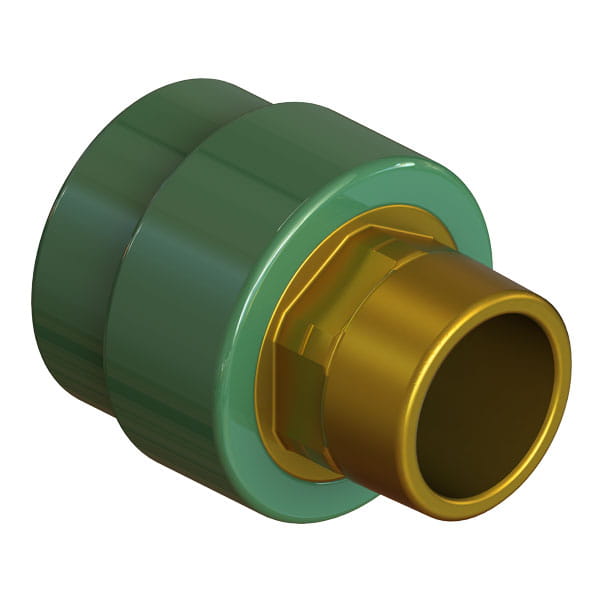

Uponor LF Brass Male Threaded Adapter, 2" PP-RCT x 2" NPT

Part no.PR4522020
StatusActive

Part information and details

Codes

CodesCMC|IPC|UMC

Dimensions

A [frac]3 29/64 inch
A [inch]3.455 inch
B [frac]1 5/64 inch
B [inch]1.079 inch
C [frac]1 33/64 inch
C [inch]1.51 inch
D [frac]49/64 inch
D [inch]0.76 inch
E [frac]3 27/32 inch
E [inch]3.839 inch
F [frac]3 9/32 inch
F [inch]3.287 inch
G [frac]2 25/64 inch
G [inch]2.392 inch
H [frac]1 59/64 inch
H [inch]1.919 inch
I [frac]1 41/64 inch
I [inch]1.644 inch
Equivalent length through [ft]4.8 ft
Weight per UOM [lbs/UOM]1.25 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsNSF-61|ASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]2"
End Size 2 [inch|mm]2"
End Type 1Socket
End Type 2MNPT
Operating Pressure 1 [PSI]270 psi
Operating Pressure 2 [PSI]176 psi
Operating Pressure 3 [PSI]120 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]120 °f
Operating Temperature 3 [°F]180 °f
Material groupPP-RCT
Prop 65 label required?Yes
