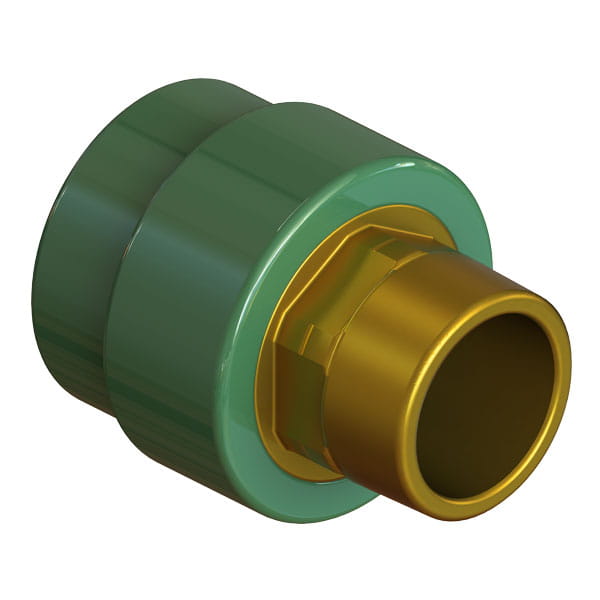

Uponor LF Brass Male Threaded Adapter, 3/4" PP-RCT x 3/4" NPT

Part no.PR4527575
StatusActive

Part information and details

Codes

CodesCMC|IPC|UMC

Dimensions

A [frac]2 1/16 inch
A [inch]2.067 inch
B [frac]5/8 inch
B [inch]0.63 inch
C [frac]13/16 inch
C [inch]0.807 inch
D [frac]35/64 inch
D [inch]0.55 inch
E [frac]1 39/64 inch
E [inch]1.606 inch
F [frac]1 11/32 inch
F [inch]1.348 inch
G [frac]1 1/16 inch
G [inch]1.063 inch
H [frac]51/64 inch
H [inch]0.803 inch
I [frac]43/64 inch
I [inch]0.674 inch
Equivalent length through [ft]1.9 ft
Weight per UOM [lbs/UOM]0.22 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsNSF-61|ASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]3/4"
End Size 2 [inch|mm]3/4"
End Type 1Socket
End Type 2MNPT
Operating Pressure 1 [PSI]270 psi
Operating Pressure 2 [PSI]176 psi
Operating Pressure 3 [PSI]120 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]120 °f
Operating Temperature 3 [°F]180 °f
Material groupPP-RCT
Prop 65 label required?Yes
