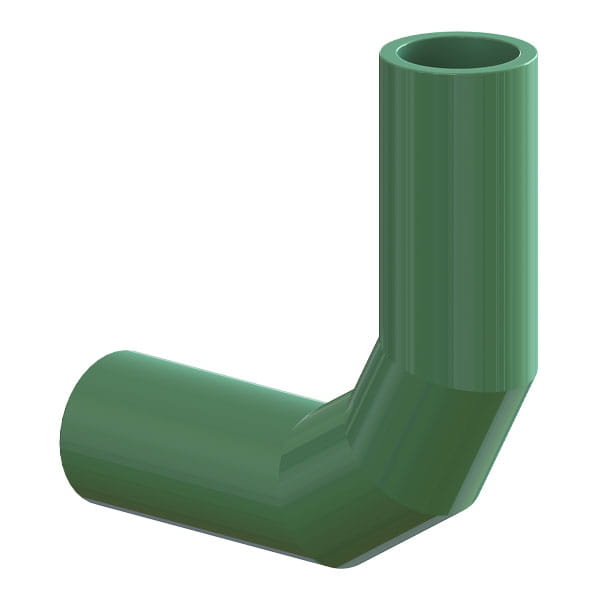

Uponor PP-RCT 90 Elbow, Cold Potable, 6" x 6", SDR 11

Part no.PR114769060
StatusActive

Part information and details

Codes

CodesUPC|IRC|IPC|NPC of Canada|UMC|CMC|CPC|IMC

Dimensions

A [frac]6 19/64 inch
A [inch]6.3 inch
B [frac]19 1/4 inch
B [inch]19.25 inch
C [frac]19 1/4 inch
C [inch]19.25 inch
D [frac]22 13/32 inch
D [inch]22.4 inch
E [frac]22 13/32 inch
E [inch]22.4 inch
F [frac]37/64 inch
F [inch]0.573 inch
Equivalent length through [ft]17.2 ft
Weight per UOM [lbs/UOM]12.58 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775|NSF-51

Standards

StandardsNSF-61|ASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]6"
End Size 2 [inch|mm]6"
End Type 1Butt
End Type 2Butt
Operating Pressure 1 [PSI]215 psi
Operating Pressure 2 [PSI]120 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]140 °f
Operating Temperature 3 [°F]180 °f
Material groupPP-RCT
