PR17435100

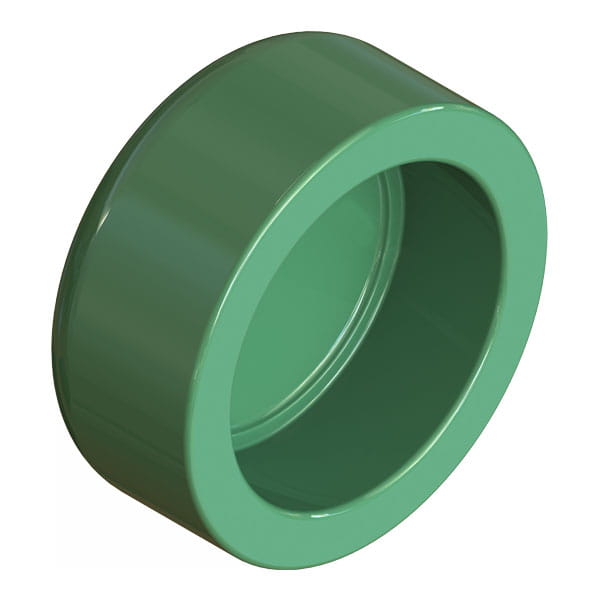

Uponor PP-RCT End Cap, 10", SDR 17.6

Part no.PR17435100
StatusActive

Part information and details

Codes

CodesCMC|IMC|UMC

Dimensions

A [frac]9 7/8 inch
A [inch]9.874 inch
B [frac]8 11/16 inch
B [inch]8.693 inch
C [frac]4 31/64 inch
C [inch]4.48 inch
D [frac]2 29/32 inch
D [inch]2.913 inch
E [frac]4 15/16 inch
E [inch]4.937 inch
Weight per UOM [lbs/UOM]4.68 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]10"
End Type 1Butt
Operating Pressure 1 [PSI]130 psi
Operating Pressure 2 [PSI]70 psi
Operating Pressure 3 [PSI]50 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]140 °f
Operating Temperature 3 [°F]180 °f
Material groupPP-RCT
