PR2982525

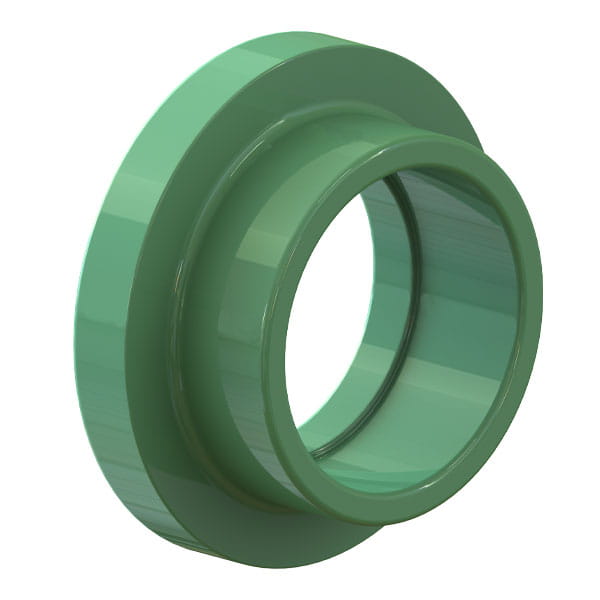

Uponor PP-RCT Flange Adapter, 2 1/2", for Butterfly Valves

Part no.PR2982525
StatusActive

Part information and details

Codes

CodesCMC

Dimensions

A [frac]1 3/16 inch
A [inch]1.181 inch
B [frac]4 19/32 inch
B [inch]4.587 inch
C [frac]3 19/32 inch
C [inch]3.587 inch
D [frac]31/64 inch
D [inch]0.492 inch
E [frac]1 43/64 inch
E [inch]1.673 inch
F [frac]1 51/64 inch
F [inch]1.793 inch
G [frac]2 19/64 inch
G [inch]2.293 inch
Weight per UOM [lbs/UOM]0.37 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsASTM E84|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]2-1/2"
End Type 1Socket
End Type 2Flange
Operating Pressure 1 [PSI]340 psi
Operating Pressure 2 [PSI]190 psi
Operating Pressure 3 [PSI]100 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]140 °f
Operating Temperature 3 [°F]180 °f
Material groupPP-RCT
