PR1729840

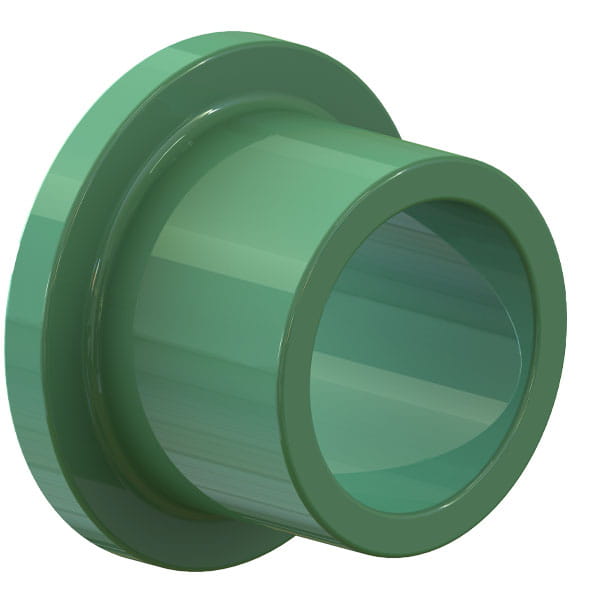

Uponor PP-RCT Flange Adapter, 4", SDR 17.6, Butt or Socket Fused with Coupling

Part no.PR1729840
StatusActive

Part information and details

Codes

CodesCMC

Dimensions

A [frac]7 45/64 inch
A [inch]7.697 inch
B [frac]6 13/64 inch
B [inch]6.205 inch
C [frac]4 61/64 inch
C [inch]4.961 inch
D [frac]3 7/64 inch
D [inch]3.102 inch
Weight per UOM [lbs/UOM]1.43 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsASTM E84|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]4"
End Type 1Butt
End Type 2Flange
Operating Pressure 1 [PSI]130 psi
Operating Pressure 2 [PSI]70 psi
Operating Pressure 3 [PSI]50 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]140 °f
Operating Temperature 3 [°F]180 °f
Material groupPP-RCT
