PR1729880

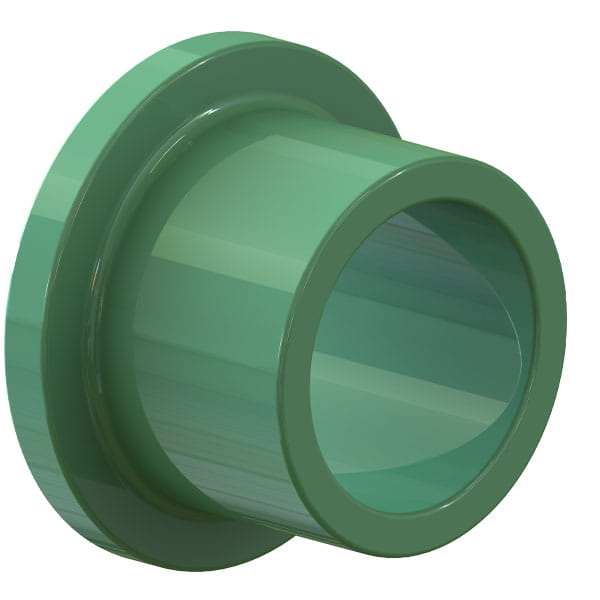

Uponor PP-RCT Flange Adapter, 8", SDR 17.6

Part no.PR1729880
StatusActive

Part information and details

Codes

CodesCMC

Dimensions

A [frac]5 5/16 inch
A [inch]5.315 inch
B [frac]10 7/16 inch
B [inch]10.433 inch
C [frac]7 57/64 inch
C [inch]7.898 inch
D [frac]5 7/32 inch
D [inch]5.217 inch
Weight per UOM [lbs/UOM]3.75 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsASTM E84|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]8"
End Type 1Butt
End Type 2Flange
Operating Pressure 1 [PSI]130 psi
Operating Pressure 2 [PSI]70 psi
Operating Pressure 3 [PSI]50 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]140 °f
Operating Temperature 3 [°F]180 °f
Material groupPP-RCT
