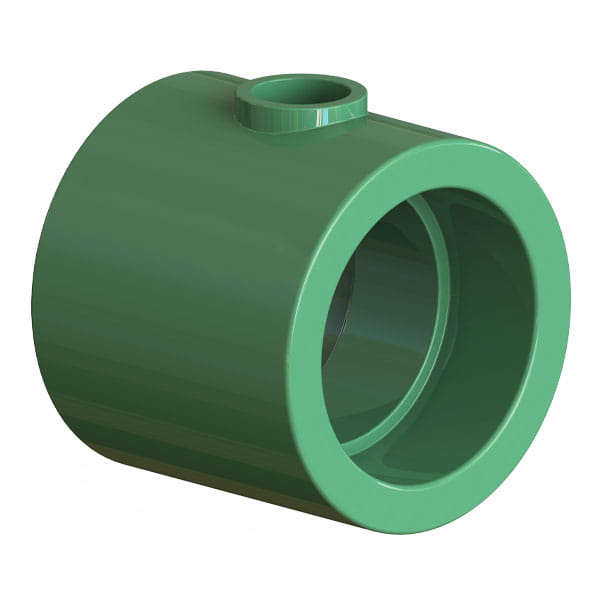

Uponor PP-RCT Reducing Tee, 3" x 3" x 1

Part no.PR4753310

Find a distributor

Availability of specific products varies by distributor.

Part information and details




A [frac]1 19/64 inch
A [inch]1.299 inch
B [frac]3/4 inch
B [inch]0.748 inch
C [frac]3/4 inch
C [inch]0.748 inch
D [frac]1 19/64 inch
D [inch]1.299 inch
E [frac]1 13/16 inch
E [inch]1.807 inch
F [frac]23/32 inch
F [inch]0.713 inch
G [frac]4 3/32 inch
G [inch]4.094 inch
H [frac]4 7/8 inch
H [inch]4.868 inch
I [frac]4 45/64 inch
I [inch]4.697 inch
J [frac]53/64 inch
J [inch]0.825 inch
K [frac]2 11/32 inch
K [inch]2.348 inch
Equivalent length branch [ft]4.2 ft
Equivalent length through [ft]2.5 ft
Weight per UOM [lbs/UOM]1.2 lbs/uom


ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775


StandardsASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]3"
End Size 2 [inch|mm]3"
End Size 3 [inch|mm]1"
End Type 1Socket
End Type 2Socket
End Type 3Socket
Operating Pressure 1 [PSI]340 psi
Operating Pressure 2 [PSI]190 psi
Operating Pressure 3 [PSI]100 psi
Operating Temperature 1 [°F]73 °F
Operating Temperature 2 [°F]140 °F
Operating Temperature 3 [°F]180 °F
Material groupPP-RCT
