PR4754425

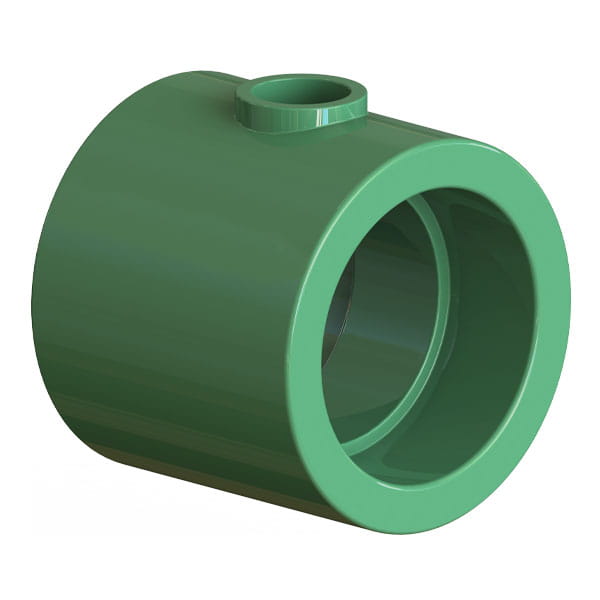

Uponor PP-RCT Reducing Tee, 4" x 4" x 2 1/2

Part no.PR4754425
StatusActive

Part information and details

Codes

CodesCMC|IMC|UMC

Dimensions

A [frac]1 37/64 inch
A [inch]1.575 inch
B [frac]1 37/64 inch
B [inch]1.575 inch
C [frac]1 37/64 inch
C [inch]1.575 inch
D [frac]1 37/64 inch
D [inch]1.575 inch
E [frac]2 33/64 inch
E [inch]2.52 inch
F [frac]1 3/16 inch
F [inch]1.181 inch
G [frac]6 19/64 inch
G [inch]6.299 inch
H [frac]6 31/32 inch
H [inch]6.972 inch
I [frac]6 35/64 inch
I [inch]6.543 inch
J [frac]1 61/64 inch
J [inch]1.955 inch
K [frac]3 17/64 inch
K [inch]3.272 inch
Equivalent length branch [ft]9.8 ft
Equivalent length through [ft]4.2 ft
Weight per UOM [lbs/UOM]3.62 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]4"
End Size 2 [inch|mm]4"
End Size 3 [inch|mm]2-1/2"
End Type 1Socket
End Type 2Socket
End Type 3Socket
Operating Pressure 1 [PSI]340 psi
Operating Pressure 2 [PSI]190 psi
Operating Pressure 3 [PSI]100 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]140 °f
Operating Temperature 3 [°F]180 °f
Material groupPP-RCT
