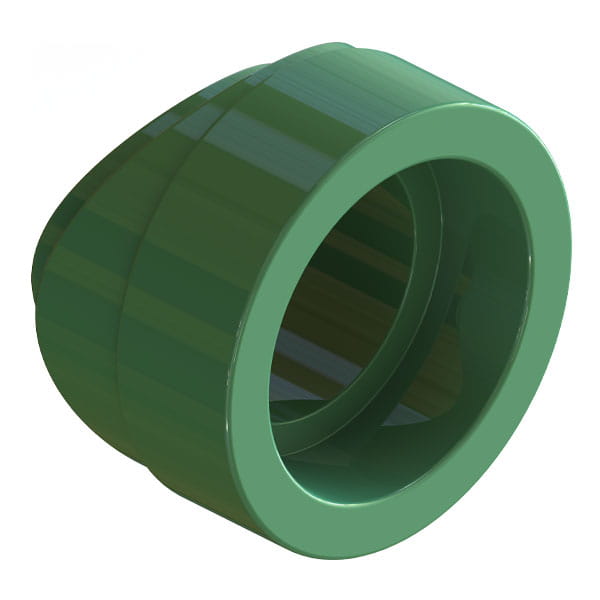

Uponor PP-RCT Saddle, 8" x 3/4", for Outlet Fusion

Part no.PR4788075
StatusActive

Part information and details

Codes

CodesCMC|IMC|UMC

Dimensions

A [frac]5/8 inch
A [inch]0.63 inch
B [frac]15/64 inch
B [inch]0.236 inch
C [frac]63/64 inch
C [inch]0.984 inch
D [frac]1 25/32 inch
D [inch]1.788 inch
E [frac]1 9/32 inch
E [inch]1.287 inch
F [frac]7 29/32 inch
F [inch]7.906 inch
Weight per UOM [lbs/UOM]0.03 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsNSF-61|ASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]8"
End Size 2 [inch|mm]3/4"
End Type 1Saddle
End Type 2Socket
Material groupPP-RCT
