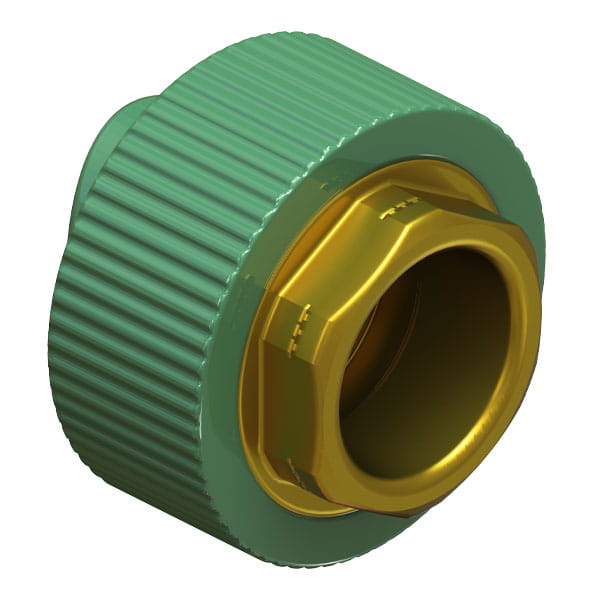

Uponor PP-RCT Transition Saddle, 6" x 1", Female NPT, for Outlet Fusion

Part no.PR4796010
StatusActive

Part information and details

Codes

CodesCMC|IMC|UMC

Dimensions

A [frac]25/32 inch
A [inch]0.787 inch
B [frac]1 1/2 inch
B [inch]1.496 inch
C [frac]21/32 inch
C [inch]0.661 inch
D [frac]2 23/64 inch
D [inch]2.36 inch
E [frac]2 9/32 inch
E [inch]2.283 inch
F [frac]1 3/16 inch
F [inch]1.18 inch
G [frac]53/64 inch
G [inch]0.835 inch
H [frac]5/8 inch
H [inch]0.63 inch
I [frac]1 17/64 inch
I [inch]1.26 inch
J [frac]6 19/64 inch
J [inch]6.303 inch
Equivalent length through [ft]1.7 ft
Weight per UOM [lbs/UOM]0.42 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsNSF-61|ASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]6"
End Size 2 [inch|mm]1"
End Type 1Saddle
End Type 2FNPT
Operating Pressure 1 [PSI]340 psi
Operating Pressure 2 [PSI]190 psi
Operating Pressure 3 [PSI]100 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]140 °f
Operating Temperature 3 [°F]180 °f
Material groupPP-RCT
Prop 65 label required?Yes
