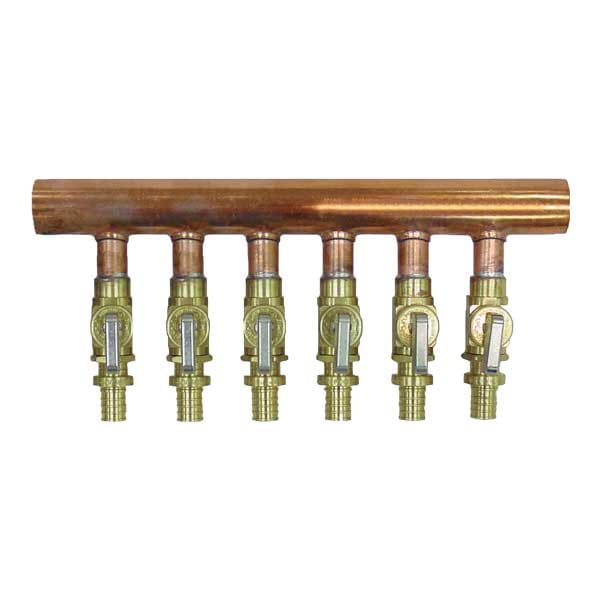

1" Copper Manifold with LF Brass 1/2" ProPEX Ball Valve, 6 outlets
Número de piezaLF2500600
EstadoActivo
Encuentre un distribuidor
La disponibilidad de productos específicos varía según el distribuidor.
Información y detalles de la pieza
Codes
| Codes | UPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC |
|---|
Dimensions
| A [frac] | 10 1/2 inch |
|---|---|
| A [inch] | 10.5 inch |
| B [frac] | 0 inch |
| B [inch] | 0 inch |
| C [frac] | 1 1/2 inch |
| C [inch] | 1.5 inch |
| D [frac] | 1 1/2 inch |
| D [inch] | 1.5 inch |
| E [frac] | 2 45/64 inch |
| E [inch] | 2.698 inch |
| F [frac] | 45/64 inch |
| F [inch] | 0.709 inch |
| G [frac] | 3 31/32 inch |
| G [inch] | 3.97 inch |
| H [frac] | 1 21/32 inch |
| H [inch] | 1.653 inch |
| Manifold Body Size (I.D.) [inch] | 1 inch |
| Weight per UOM [lbs/UOM] | 2.6 lbs/uom |
Listings
| Listings | IAPMO-ES|ICC-ES-PMG|cNSFus-pw-G|U.P.Code |
|---|
Standards
| Standards | NSF-372|ASTM F877|ASTM F1960|CSA B137.5|NSF-61|NSF-14 |
|---|
Technical Data
| End Size 1 [inch|mm] | 1/2" |
|---|---|
| End Type 1 | ProPEX |
| Flow Rate Max. [gpm] | 21 gpm |
| Operating Pressure 1 [PSI] | 160 psi |
| Operating Pressure 2 [PSI] | 100 psi |
| Operating Pressure 3 [PSI] | 80 psi |
| Operating Pressure 4 [PSI] | 149 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 180 °F |
| Operating Temperature 3 [°F] | 200 °F |
| Operating Temperature 4 [°F] | 210 °F |
| Material group | Copper |
| Prop 65 label required? | Yes |
| Material Valve | LF Brass |
