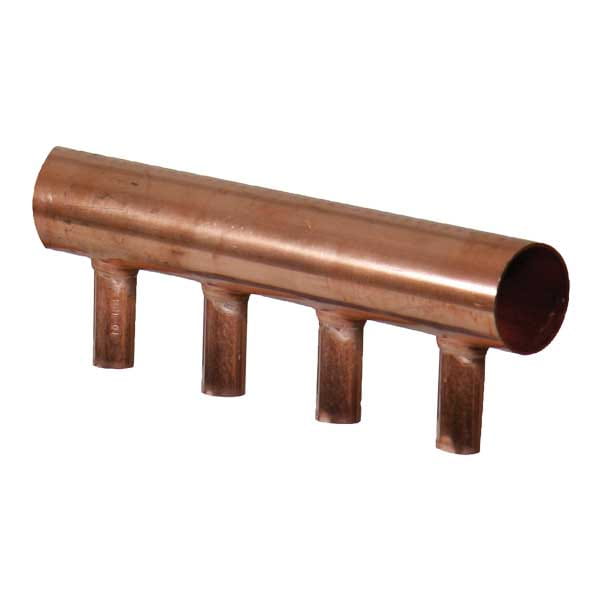

1" Copper Valveless Manifold, 4 outlets, 1/2" sweat, 1 1/2" on center
Número de piezaF2761050
EstadoPhaseout
Encuentre un distribuidor
La disponibilidad de productos específicos varía según el distribuidor.
Información y detalles de la pieza
Codes
| Codes | UPC|IPC|NPC of Canada|NSPC |
|---|
Dimensions
| A [frac] | 9 inch |
|---|---|
| A [inch] | 9 inch |
| B [frac] | 2 11/16 inch |
| B [inch] | 2.691 inch |
| C [frac] | 1 17/64 inch |
| C [inch] | 1.258 inch |
| Weight per UOM [lbs/UOM] | 0.9 lbs/uom |
Listings
| Listings | ICC-ES-PMG|IAPMO 3946|cNSFus-pw-G|CSA B137.5|U.P.Code |
|---|
Standards
| Standards | ASTM F877|CSA B137.5|NSF-61|NSF-14 |
|---|
Technical Data
| End Size 1 [inch|mm] | 1/2" |
|---|---|
| End Type 1 | Sweat |
| Flow Rate Max. [gpm] | 21 gpm |
| Operating Pressure 1 [PSI] | 160 psi |
| Operating Pressure 2 [PSI] | 100 psi |
| Operating Pressure 3 [PSI] | 80 psi |
| Operating Pressure 4 [PSI] | 149 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 180 °F |
| Operating Temperature 3 [°F] | 200 °F |
| Operating Temperature 4 [°F] | 210 °F |
| Material group | Copper |
| Prop 65 label required? | Yes |
