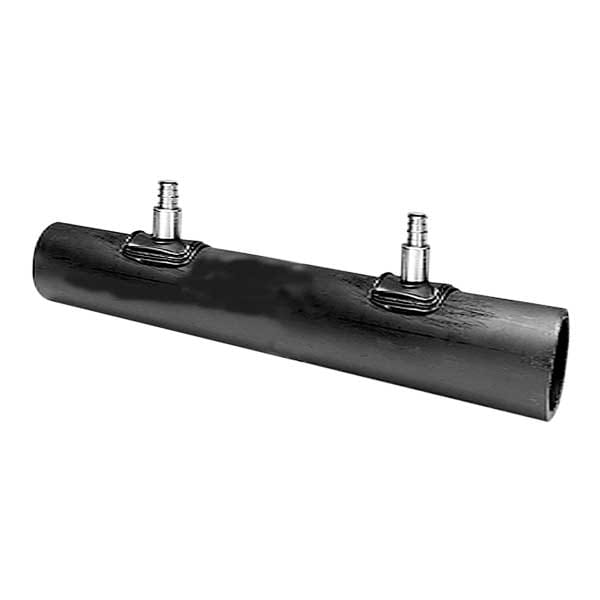

4" x 20' HDPE Valveless Manifold (12" o.c.), 20 outlet, 3/4" ProPEX
Número de piezaB2254752
EstadoActivo
Encuentre un distribuidor
La disponibilidad de productos específicos varía según el distribuidor.
Información y detalles de la pieza
Codes
| Codes | NPC of Canada|NSPC |
|---|
Dimensions
| C [frac] | 7 1/2 inch |
|---|---|
| C [inch] | 7.5 inch |
| Inner diameter pipe [inch] | 3.6299 inch |
| Outer diameter pipe [inch] | 4.5 inch |
| Weight per UOM [lbs/UOM] | 49.8 lbs/uom |
Listings
| Listings | NSF 14- and 61-certified|PPI PE-3408 |
|---|
Standards
| Standards | ASTM F1960|CSA B137.5|NSF-61|ASTM D3350|NSF-14|CGSB 41-GP-25M |
|---|
Technical Data
| End Size 1 [inch|mm] | 3/4" |
|---|---|
| End Type 1 | ProPEX |
| Flow Rate Max. [gpm] | 226 gpm |
| Operating Pressure 1 [PSI] | 160 psi |
| Operating Pressure 2 [PSI] | 100 psi |
| Operating Pressure 3 [PSI] | 80 psi |
| Operating Pressure 4 [PSI] | 125 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 120 °F |
| Operating Temperature 3 [°F] | 140 °F |
| Operating Temperature 4 [°F] | 100 °F |
| Material group | HDPE |
| Operating temperature max. [°F] | 438.8 °f |
| Prop 65 label required? | Yes |
| Submittal Subcomponent Material | 3408 Polyethylene material |
