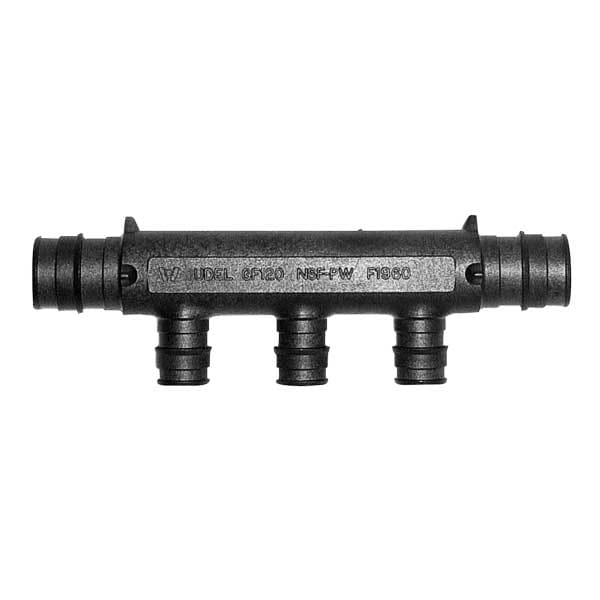

EP Flow-through Multi-port Tee, 3 (1/2") outlets, 1" x 3/4" ProPEX
Número de piezaQ2231057
EstadoActivo
Encuentre un distribuidor
La disponibilidad de productos específicos varía según el distribuidor.
Información y detalles de la pieza
Codes
| Codes | UPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC |
|---|
Dimensions
| A [frac] | 6 13/64 inch |
|---|---|
| A [inch] | 6.196 inch |
| B [frac] | 1 3/16 inch |
| B [inch] | 1.191 inch |
| C [frac] | 4 3/64 inch |
| C [inch] | 4.05 inch |
| D [frac] | 61/64 inch |
| D [inch] | 0.955 inch |
| E [frac] | 25/32 inch |
| E [inch] | 0.775 inch |
| F [frac] | 1 1/4 inch |
| F [inch] | 1.25 inch |
| G [frac] | 19/32 inch |
| G [inch] | 0.6 inch |
| H [frac] | 23/32 inch |
| H [inch] | 0.719 inch |
| I [frac] | 1 7/8 inch |
| I [inch] | 1.879 inch |
| J [frac] | 1 31/64 inch |
| J [inch] | 1.48 inch |
| Equivalent length outlet 2 [ft] | 5.43 ft |
| Equivalent length through [ft] | 3.15 ft |
| Weight per UOM [lbs/UOM] | 0.22 lbs/uom |
Listings
| Listings | IAPMO-ES|HUD MR 1269|ICC-ES-PMG|cNSFus-pw|UL|U.P.Code|cQAIus P321 |
|---|
Standards
| Standards | ASTM E814/ULC S115|ASTM F877|ASTM F1960|CSA B137.5|ULC S102.2|ASTM E119/UL 263|NSF-61|ULC S101|NSF-14 |
|---|
Technical Data
| Cv Outlet 2 | 3.7 |
|---|---|
| Cv Through | 11.6 |
| End Size 1 [inch|mm] | 1" |
| End Size 2 [inch|mm] | 3/4" |
| End Size 3 [inch|mm] | 1/2" |
| End Type 1 | ProPEX |
| End Type 2 | ProPEX |
| End Type 3 | ProPEX |
| Operating Pressure 1 [PSI] | 160 psi |
| Operating Pressure 2 [PSI] | 100 psi |
| Operating Pressure 3 [PSI] | 80 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 180 °F |
| Operating Temperature 3 [°F] | 200 °F |
| Material group | Engineered Polymer |
