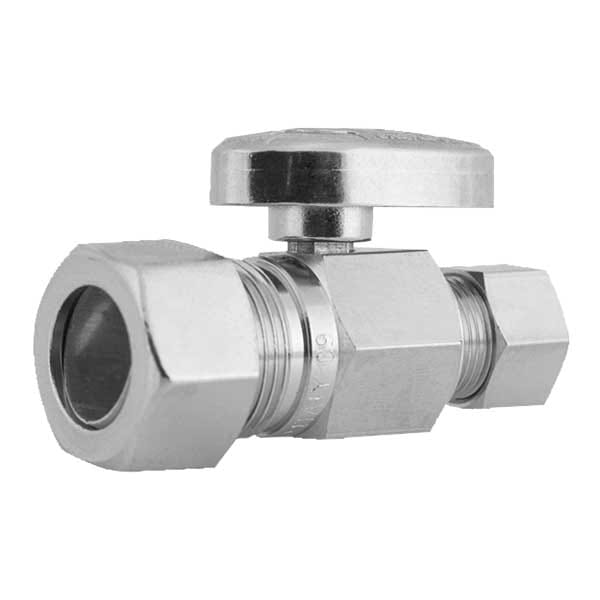

LF Brass Compression Straight Stop Valve for 1/2" PEX
Número de piezaLF4420500
EstadoActivo
Encuentre un distribuidor
La disponibilidad de productos específicos varía según el distribuidor.
Información y detalles de la pieza
Codes
| Codes | UPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC |
|---|
Dimensions
| A [frac] | 5 7/16 inch |
|---|---|
| A [inch] | 5.437 inch |
| B [frac] | 1 29/64 inch |
| B [inch] | 1.446 inch |
| C [frac] | 15/16 inch |
| C [inch] | 0.937 inch |
| D [frac] | 37/64 inch |
| D [inch] | 0.571 inch |
| E [frac] | 35/64 inch |
| E [inch] | 0.541 inch |
| F [frac] | 35/64 inch |
| F [inch] | 0.541 inch |
| G [frac] | 1 27/64 inch |
| G [inch] | 1.421 inch |
| Weight per UOM [lbs/UOM] | 0.25 lbs/uom |
Listings
| Listings | cNSFus-pw-G|U.P.Code |
|---|
Standards
| Standards | NSF-372|ASME A112.18.1|ASTM F877|CSA B125|ASTM F1960|CSA B137.5|NSF-61|NSF-14 |
|---|
Technical Data
| End Size 1 [inch|mm] | 1/2" |
|---|---|
| End Size 2 [inch|mm] | 3/8" |
| End Type 1 | Compression |
| End Type 2 | Compression |
| Operating Pressure 1 [PSI] | 145 psi |
| Operating Temperature 1 [°F] | 194 °F |
| Material group | LF Brass |
| Prop 65 label required? | Yes |
| Material Valve | UNS C69300 brass (nickel plated) |
