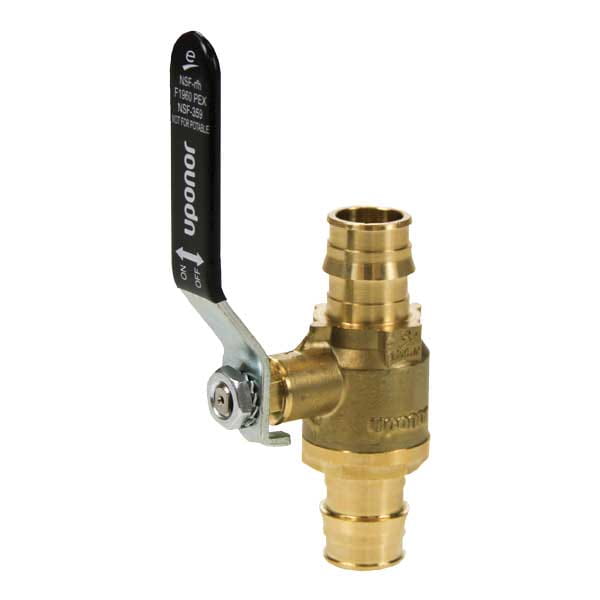

ProPEX Brass Ball Valve 3/4" PEX x 3/4" PEX
Número de piezaA3207575
EstadoPhaseout
Encuentre un distribuidor
La disponibilidad de productos específicos varía según el distribuidor.
Información y detalles de la pieza
Codes
| Codes | IMC|UMC |
|---|
Dimensions
| A [frac] | 15/16 inch |
|---|---|
| A [inch] | 0.945 inch |
| B [frac] | 1 33/64 inch |
| B [inch] | 1.51 inch |
| C [frac] | 1 7/8 inch |
| C [inch] | 1.868 inch |
| D [frac] | 3 3/8 inch |
| D [inch] | 3.372 inch |
| E [frac] | 5/8 inch |
| E [inch] | 0.63 inch |
| F [frac] | 9/16 inch |
| F [inch] | 0.555 inch |
| G [frac] | 5 17/64 inch |
| G [inch] | 5.272 inch |
| H [frac] | 2 1/2 inch |
| H [inch] | 2.498 inch |
| I [frac] | 1 17/64 inch |
| I [inch] | 1.26 inch |
| J [frac] | 3 13/32 inch |
| J [inch] | 3.4 inch |
| Weight per UOM [lbs/UOM] | 0.52 lbs/uom |
Listings
| Listings | cNSFus-rfh |
|---|
Standards
| Standards | ASTM F1960|CSA B137.5|NSF-14|ASTM F877|NSF-359 |
|---|
Technical Data
| Cold working pressure (CWP) [psi] | 200.2 psi |
|---|---|
| Cv | 18 |
| End Size 1 [inch|mm] | 3/4" |
| End Size 2 [inch|mm] | 3/4" |
| End Type 1 | ProPEX |
| End Type 2 | ProPEX |
| Operating Pressure 1 [PSI] | 160 psi |
| Operating Pressure 2 [PSI] | 100 psi |
| Operating Pressure 3 [PSI] | 80 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 180 °F |
| Operating Temperature 3 [°F] | 200 °F |
| Material group | Brass |
| Material o-ring | EPDM + FKM |
| Prop 65 label required? | Yes |
| Submittal Subcomponent Material | Seal: PTFE |
