WS4820751 ProPEX LF Brass Elbow Water Meter Valve; WS4820751; ProPEX; LF; Lead-free; Elbow; Water Meter Valve; Water Service; ws4820751

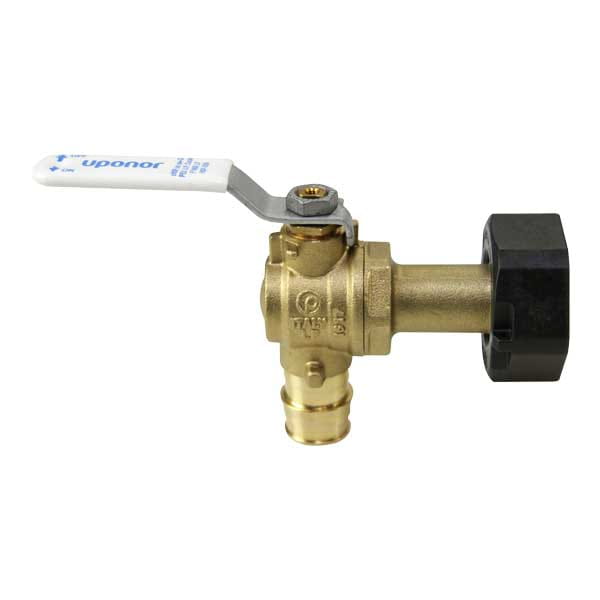

ProPEX LF Brass Elbow Water Meter Valve, 3/4" PEX x 1" NPSM

Número de piezaWS4820751

EstadoActivo

Descargar envío

Encuentre un distribuidor

La disponibilidad de productos específicos varía según el distribuidor.

Información y detalles de la pieza

Codes

Codes	UPC\|IBC\|IRC\|IPC\|NPC of Canada\|UMC\|NSPC\|IMC

Dimensions

A [frac]	15/16 inch
A [inch]	0.945 inch
B [frac]	2 1/4 inch
B [inch]	2.249 inch
C [frac]	1 35/64 inch
C [inch]	1.551 inch
D [frac]	2 63/64 inch
D [inch]	2.992 inch
E [frac]	25/32 inch
E [inch]	0.781 inch
F [frac]	1 29/32 inch
F [inch]	1.9 inch
G [frac]	1 19/64 inch
G [inch]	1.299 inch
H [frac]	21/32 inch
H [inch]	0.65 inch
I [frac]	3 9/32 inch
I [inch]	3.277 inch
J [frac]	5 47/64 inch
J [inch]	5.735 inch
K [frac]	21/32 inch
K [inch]	0.65 inch
Weight per UOM [lbs/UOM]	0.76 lbs/uom

Listings

Listings	HUD MR 1269\|cNSFus-pw-G\|U.P.Code

Standards

Standards	NSF-372\|ASTM F877\|NSF-359\|ASTM F1960\|CSA B137.5\|NSF-61\|NSF-14

Technical Data

Cv	4.9
End Size 1 [inch\|mm]	3/4"
End Size 2 [inch\|mm]	1"
End Type 1	ProPEX
End Type 2	NPSM
Material Gasket	EPDM
Operating Pressure 1 [PSI]	160 psi
Operating Pressure 2 [PSI]	100 psi
Operating Pressure 3 [PSI]	80 psi
Operating Temperature 1 [°F]	73 °F
Operating Temperature 2 [°F]	180 °F
Operating Temperature 3 [°F]	200 °F
Material group	LF Brass
Operating temperature min. [°F]	-29 °f
Prop 65 label required?	Yes
Submittal Subcomponent Material	Valve: C27453 lead-free (LF) brass per ASTM B283/B283M Metal nut: UNS CW614 per ASTM B16/B16M EP nut: Polypropylene GF30 black Gasket: EPDM

Codes

Codes	UPC\|IBC\|IRC\|IPC\|NPC of Canada\|UMC\|NSPC\|IMC

Dimensions

A [mm / String]	24 mm/string
B [mm / String]	57.13 mm/string
C [mm / String]	39.40 mm/string
D [mm / String]	76 mm/string
E [mm / String]	19.83 mm/string
F [mm / String]	48.26 mm/string
G [mm / String]	33 mm/string
H [mm / String]	16.50 mm/string
I [mm / String]	83.23 mm/string
J [mm / String]	145.68 mm/string
K [mm / String]	16.50 mm/string
Weight per UOM [kg/UOM]	0.345 kg/uom

Listings

Listings	HUD MR 1269\|cNSFus-pw-G\|U.P.Code

Standards

Standards	NSF-372\|ASTM F877\|NSF-359\|ASTM F1960\|CSA B137.5\|NSF-61\|NSF-14

Technical Data

Cv	4.9
End Type 1	ProPEX
End Type 2	NPSM
Material Gasket	EPDM
Operating Pressure 1 [bar]	11 bar
Operating Pressure 2 [bar]	6.9 bar
Operating Pressure 3 [bar]	5.5 bar
Operating Temperature 1 [°C]	23 °C
Operating Temperature 2 [°C]	82 °C
Operating Temperature 3 [°C]	93 °C
Material group	LF Brass
Operating Temperature Min. [°C]	-34 °C
Prop 65 label required?	Yes
Submittal Subcomponent Material	Valve: C27453 lead-free (LF) brass per ASTM B283/B283M Metal nut: UNS CW614 per ASTM B16/B16M EP nut: Polypropylene GF30 black Gasket: EPDM
