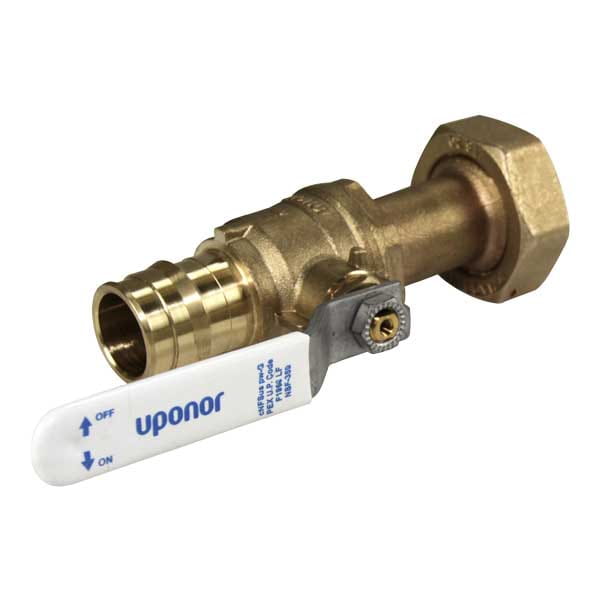

ProPEX LF Brass Straight Water Meter Valve, 1" PEX x 1 1/4" NPSM
Número de piezaWS4821000
EstadoActivo
Encuentre un distribuidor
La disponibilidad de productos específicos varía según el distribuidor.
Información y detalles de la pieza
Codes
| Codes | UPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC |
|---|
Dimensions
| A [frac] | 1 3/16 inch |
|---|---|
| A [inch] | 1.181 inch |
| B [frac] | 3 19/64 inch |
| B [inch] | 3.302 inch |
| C [frac] | 2 1/64 inch |
| C [inch] | 2.015 inch |
| D [frac] | 3 13/16 inch |
| D [inch] | 3.819 inch |
| E [frac] | 43/64 inch |
| E [inch] | 0.677 inch |
| F [frac] | 2 1/4 inch |
| F [inch] | 2.25 inch |
| G [frac] | 1 39/64 inch |
| G [inch] | 1.614 inch |
| H [frac] | 5 5/32 inch |
| H [inch] | 5.158 inch |
| I [frac] | 3 9/64 inch |
| I [inch] | 3.139 inch |
| J [frac] | 7 1/8 inch |
| J [inch] | 7.119 inch |
| K [frac] | 13/16 inch |
| K [inch] | 0.807 inch |
| Weight per UOM [lbs/UOM] | 1.22 lbs/uom |
Listings
| Listings | HUD MR 1269|cNSFus-pw-G|U.P.Code |
|---|
Standards
| Standards | NSF-372|ASTM F877|NSF-359|ASTM F1960|CSA B137.5|NSF-61|NSF-14 |
|---|
Technical Data
| Cv | 18.7 |
|---|---|
| End Size 1 [inch|mm] | 1" |
| End Size 2 [inch|mm] | 1-1/4" |
| End Type 1 | ProPEX |
| End Type 2 | NPSM |
| Material Gasket | EPDM |
| Operating Pressure 1 [PSI] | 160 psi |
| Operating Pressure 2 [PSI] | 100 psi |
| Operating Pressure 3 [PSI] | 80 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 180 °F |
| Operating Temperature 3 [°F] | 200 °F |
| Material group | LF Brass |
| Operating temperature min. [°F] | -29 °f |
| Prop 65 label required? | Yes |
| Submittal Subcomponent Material | Valve: C27453 lead-free (LF) brass per ASTM B283/B283M Metal nut: UNS CW614 per ASTM B16/B16M EP nut: Polypropylene GF30 black Gasket: EPDM |
