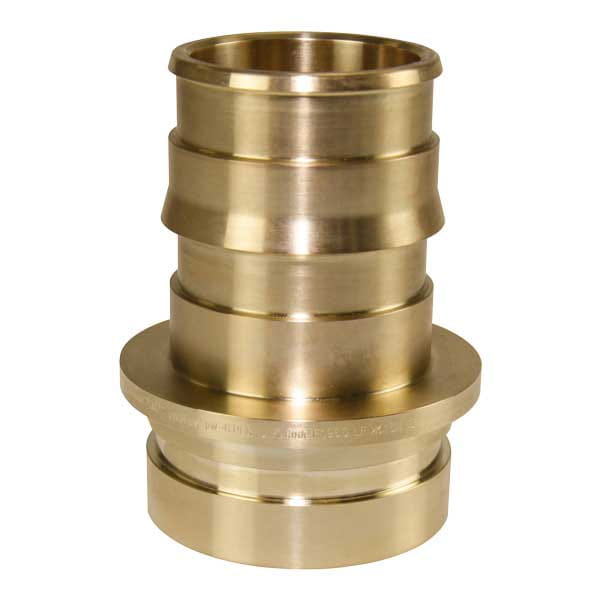

ProPEX LF Groove Fitting Adapter, 3" PEX LF Brass x 2 1/2" IPS Groove
Número de piezaLFV2973025
EstadoPhaseout
Encuentre un distribuidor
La disponibilidad de productos específicos varía según el distribuidor.
Información y detalles de la pieza
Codes
| Codes | UPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC |
|---|
Dimensions
| A [frac] | 3 3/8 inch |
|---|---|
| A [inch] | 3.38 inch |
| B [frac] | 7/8 inch |
| B [inch] | 0.875 inch |
| C [frac] | 5/8 inch |
| C [inch] | 0.625 inch |
| D [frac] | 2 7/8 inch |
| D [inch] | 2.875 inch |
| E [frac] | 3 51/64 inch |
| E [inch] | 3.79 inch |
| F [frac] | 4 7/8 inch |
| F [inch] | 4.88 inch |
| G [frac] | 1 7/16 inch |
| G [inch] | 1.437 inch |
| Equivalent length outlet 2 [ft] | 4.15 ft |
| Equivalent length through [ft] | 1.38 ft |
| Weight per UOM [lbs/UOM] | 2.76 lbs/uom |
Listings
| Listings | IAPMO-ES|ICC-ES-PMG|cNSFus-pw-G|U.P.Code |
|---|
Standards
| Standards | NSF-372|ASTM F877|ASTM F1960|CSA B137.5|NSF-61|NSF-14 |
|---|
Technical Data
| Cv Outlet 2 | 250.7 |
|---|---|
| Cv | 334.4 |
| End Size 1 [inch|mm] | 3" |
| End Size 2 [inch|mm] | 2-1/2" |
| End Type 1 | ProPEX |
| End Type 2 | IPS Groove |
| Operating Pressure 1 [PSI] | 160 psi |
| Operating Pressure 2 [PSI] | 100 psi |
| Operating Pressure 3 [PSI] | 80 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 180 °F |
| Operating Temperature 3 [°F] | 200 °F |
| Material group | LF Brass |
| Prop 65 label required? | Yes |
