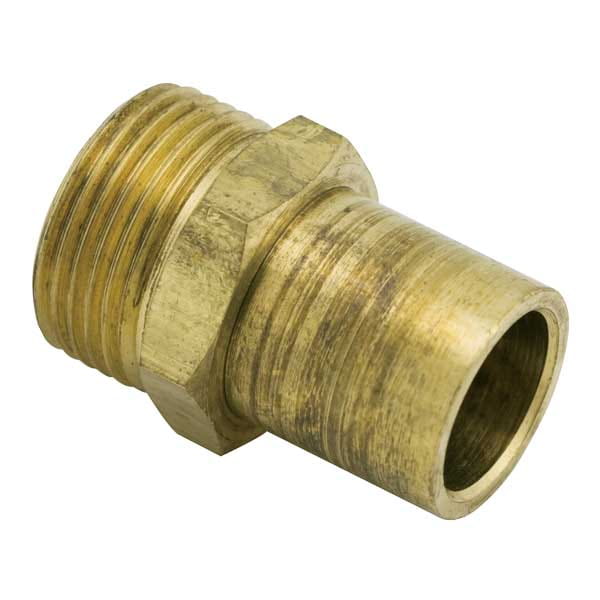

QS-style Copper Fitting Adapter, R25 X 3/4" Copper (for 3/4" and 5/8" tubing only)

Número de piezaA4342575

EstadoPhaseout

Descargar envío

Encuentre un distribuidor

La disponibilidad de productos específicos varía según el distribuidor.

Información y detalles de la pieza

Dimensions

A [frac]	15/16 inch
A [inch]	0.935 inch
B [frac]	19/64 inch
B [inch]	0.3 inch
C [frac]	21/32 inch
C [inch]	0.657 inch
D [frac]	1 9/16 inch
D [inch]	1.557 inch
E [frac]	1 57/64 inch
E [inch]	1.892 inch
F [frac]	1 3/8 inch
F [inch]	1.375 inch
G [frac]	25/32 inch
G [inch]	0.778 inch
H [frac]	11/16 inch
H [inch]	0.687 inch
Weight per UOM [lbs/UOM]	0.28 lbs/uom

Standards

Standards	R25: ISO 228-G 1"\|ASTM F877

Technical Data

End Size 1 [inch\|mm]	1"
End Size 2 [inch\|mm]	3/4"
End Type 1	ISO 228-G
End Type 2	Sweat
Operating Pressure 1 [PSI]	160 psi
Operating Pressure 2 [PSI]	100 psi
Operating Pressure 3 [PSI]	80 psi
Operating Temperature 1 [°F]	73 °F
Operating Temperature 2 [°F]	180 °F
Operating Temperature 3 [°F]	200 °F
Material group	Brass
Prop 65 label required?	Yes

Dimensions

A [mm / String]	23.75 mm/string
B [mm / String]	7.62 mm/string
C [mm / String]	16.69 mm/string
D [mm / String]	39.54 mm/string
E [mm / String]	48.06 mm/string
F [mm / String]	34.93 mm/string
G [mm / String]	19.77 mm/string
H [mm / String]	17.46 mm/string
Weight per UOM [kg/UOM]	0.127 kg/uom

Standards

Standards	R25: ISO 228-G 1"\|ASTM F877

Technical Data

End Type 1	ISO 228-G
End Type 2	Sweat
Operating Pressure 1 [bar]	11 bar
Operating Pressure 2 [bar]	6.9 bar
Operating Pressure 3 [bar]	5.5 bar
Operating Temperature 1 [°C]	23 °C
Operating Temperature 2 [°C]	82 °C
Operating Temperature 3 [°C]	93 °C
Material group	Brass
Prop 65 label required?	Yes
