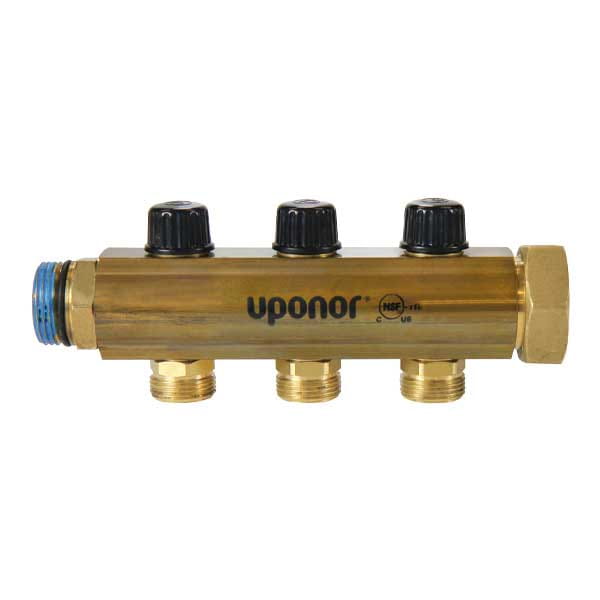

TruFLOW Jr. Manifold Balancing Valves, 3-loop
Número de piezaA2663213
EstadoPhaseout
Encuentre un distribuidor
La disponibilidad de productos específicos varía según el distribuidor.
Información y detalles de la pieza
Codes
| Codes | IMC|IRC|NBC of Canada|UMC |
|---|
Dimensions
| Manifold Body Size (I.D.) [inch] | 1 inch |
|---|---|
| Weight per UOM [lbs/UOM] | 3.2 lbs/uom |
Listings
| Listings | cNSFus-rfh |
|---|
Standards
| Standards | CSA B137.5|R32: ISO 228-G 1¼"|ASTM F877|R20: ISO 228-G ¾" |
|---|
Technical Data
| Cv Branch | 1.9 |
|---|---|
| End Size 1 [inch|mm] | 1-1/4" |
| End Size 2 [inch|mm] | 3/4" |
| End Type 1 | ISO 228-G |
| End Type 2 | ISO 228-G |
| Flow Rate Max. [gpm] | 14 gpm |
| Operating Pressure 1 [PSI] | 160 psi |
| Operating Pressure 2 [PSI] | 100 psi |
| Operating Pressure 3 [PSI] | 80 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 180 °F |
| Operating Temperature 3 [°F] | 200 °F |
| Material group | Brass |
| Prop 65 label required? | Yes |
