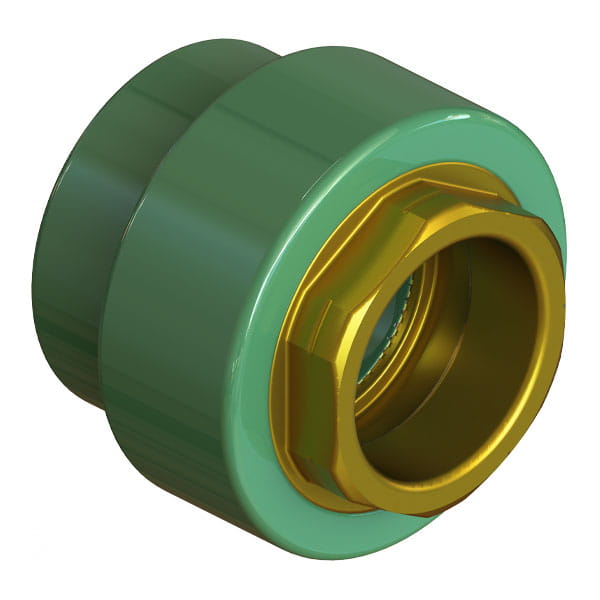

Uponor LF Brass Female Threaded Adapter, 1 1/4" PP-RCT x 1'' NPT

Número de piezaPR4571310

EstadoActivo

Descargar envío

Encuentre un distribuidor

La disponibilidad de productos específicos varía según el distribuidor.

Información y detalles de la pieza

Codes

Codes	CMC\|IPC\|UMC

Dimensions

A [frac]	53/64 inch
A [inch]	0.835 inch
B [frac]	1 1/64 inch
B [inch]	1.008 inch
C [frac]	11/16 inch
C [inch]	0.69 inch
D [frac]	2 3/4 inch
D [inch]	2.756 inch
E [frac]	1 27/32 inch
E [inch]	1.843 inch
F [frac]	1 5/64 inch
F [inch]	1.083 inch
G [frac]	5/16 inch
G [inch]	0.318 inch
Equivalent length through [ft]	1.7 ft
Weight per UOM [lbs/UOM]	0.4 lbs/uom

Listings

Listings	ICC-ES-PMG 1106\|IAPMO-R&T 8358\|QAI P321-5\|IAPMO K-12775

Standards

Standards	NSF-61\|ASTM E84\|NSF-14\|ASTM F2389\|CSA B137.11

Technical Data

End Size 1 [inch\|mm]	1-1/4"
End Size 2 [inch\|mm]	1"
End Type 1	Socket
End Type 2	FNPT
Operating Pressure 1 [PSI]	340 psi
Operating Pressure 2 [PSI]	190 psi
Operating Pressure 3 [PSI]	100 psi
Operating Temperature 1 [°F]	73 °F
Operating Temperature 2 [°F]	140 °F
Operating Temperature 3 [°F]	180 °F
Material group	PP-RCT
Prop 65 label required?	Yes

Codes

Codes	CMC\|IPC\|UMC

Dimensions

A [mm / String]	21.20 mm/string
B [mm / String]	25.60 mm/string
C [mm / String]	17.53 mm/string
D [mm / String]	70 mm/string
E [mm / String]	46.80 mm/string
F [mm / String]	27.50 mm/string
G [mm / String]	8.07 mm/string
Equivalent length through [m]	0.518 m
Weight per UOM [kg/UOM]	0.182 kg/uom

Listings

Listings	ICC-ES-PMG 1106\|IAPMO-R&T 8358\|QAI P321-5\|IAPMO K-12775

Standards

Standards	NSF-61\|ASTM E84\|NSF-14\|ASTM F2389\|CSA B137.11

Technical Data

End Type 1	Socket
End Type 2	FNPT
Operating Pressure 1 [bar]	23.44 bar
Operating Pressure 2 [bar]	13.1 bar
Operating Pressure 3 [bar]	6.9 bar
Operating Temperature 1 [°C]	23 °C
Operating Temperature 2 [°C]	60 °C
Operating Temperature 3 [°C]	82 °C
Material group	PP-RCT
Prop 65 label required?	Yes
