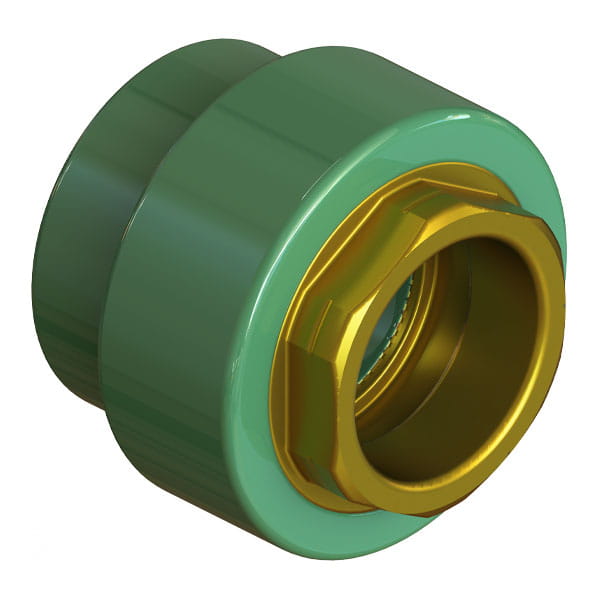

Uponor LF Brass Female Threaded Adapter, 3/4" PP-RCT x 3/4" NPT
Número de piezaPR4577575
EstadoActivo
Encuentre un distribuidor
La disponibilidad de productos específicos varía según el distribuidor.
Información y detalles de la pieza
Codes
| Codes | CMC|IPC|UMC |
|---|
Dimensions
| A [frac] | 5/8 inch |
|---|---|
| A [inch] | 0.63 inch |
| B [frac] | 7/8 inch |
| B [inch] | 0.882 inch |
| C [frac] | 35/64 inch |
| C [inch] | 0.55 inch |
| D [frac] | 1 39/64 inch |
| D [inch] | 1.61 inch |
| E [frac] | 1 33/64 inch |
| E [inch] | 1.512 inch |
| F [frac] | 43/64 inch |
| F [inch] | 0.673 inch |
| G [frac] | 21/64 inch |
| G [inch] | 0.332 inch |
| Equivalent length through [ft] | 1.4 ft |
| Weight per UOM [lbs/UOM] | 0.15 lbs/uom |
Listings
| Listings | ICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775 |
|---|
Standards
| Standards | NSF-61|ASTM E84|NSF-14|ASTM F2389|CSA B137.11 |
|---|
Technical Data
| End Size 1 [inch|mm] | 3/4" |
|---|---|
| End Size 2 [inch|mm] | 3/4" |
| End Type 1 | Socket |
| End Type 2 | FNPT |
| Operating Pressure 1 [PSI] | 270 psi |
| Operating Pressure 2 [PSI] | 176 psi |
| Operating Pressure 3 [PSI] | 120 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 120 °F |
| Operating Temperature 3 [°F] | 180 °F |
| Material group | PP-RCT |
| Prop 65 label required? | Yes |
