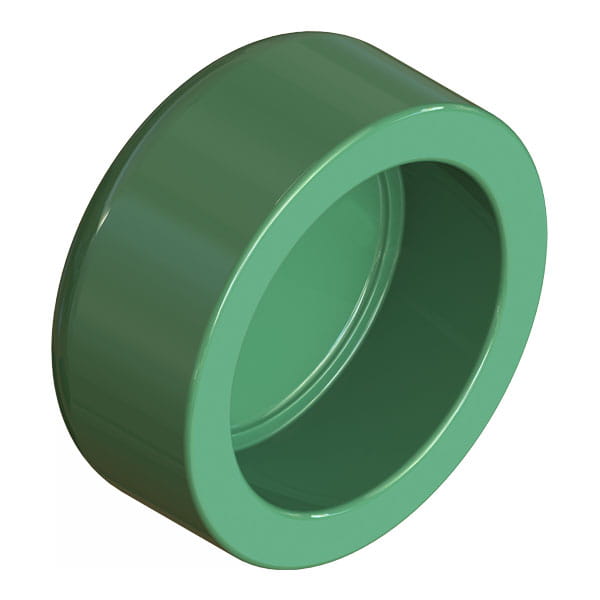

Uponor PP-RCT End Cap, 6", SDR 11
Número de piezaPR1143560
EstadoActivo
Encuentre un distribuidor
La disponibilidad de productos específicos varía según el distribuidor.
Información y detalles de la pieza
Codes
| Codes | CMC|IMC|UMC |
|---|
Dimensions
| A [frac] | 6 19/64 inch |
|---|---|
| A [inch] | 6.299 inch |
| B [frac] | 5 3/32 inch |
| B [inch] | 5.087 inch |
| C [frac] | 2 59/64 inch |
| C [inch] | 2.92 inch |
| D [frac] | 1 21/32 inch |
| D [inch] | 1.654 inch |
| E [frac] | 3 5/32 inch |
| E [inch] | 3.15 inch |
| Weight per UOM [lbs/UOM] | 1.58 lbs/uom |
Listings
| Listings | ICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775 |
|---|
Standards
| Standards | ASTM E84|NSF-14|ASTM F2389|CSA B137.11 |
|---|
Technical Data
| End Size 1 [inch|mm] | 6" |
|---|---|
| End Type 1 | Butt |
| Operating Pressure 1 [PSI] | 215 psi |
| Operating Pressure 2 [PSI] | 120 psi |
| Operating Pressure 3 [PSI] | 80 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 140 °F |
| Operating Temperature 3 [°F] | 180 °F |
| Material group | PP-RCT |
