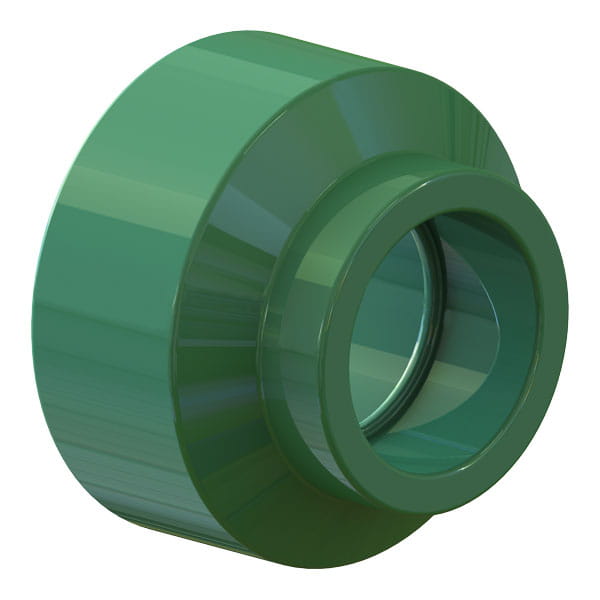

Uponor PP-RCT Fitting Reducer, 2" x 1

Número de piezaPR4772010

EstadoActivo

Descargar envío

Encuentre un distribuidor

La disponibilidad de productos específicos varía según el distribuidor.

Información y detalles de la pieza

Codes

Codes	CMC\|IMC\|UMC

Dimensions

A [frac]	2 31/64 inch
A [inch]	2.48 inch
B [frac]	47/64 inch
B [inch]	0.728 inch
C [frac]	1 23/32 inch
C [inch]	1.713 inch
D [frac]	2 7/16 inch
D [inch]	2.441 inch
E [frac]	1 15/64 inch
E [inch]	1.24 inch
F [frac]	1 15/64 inch
F [inch]	1.232 inch
G [frac]	39/64 inch
G [inch]	0.616 inch
Equivalent length through [ft]	2.8 ft
Weight per UOM [lbs/UOM]	0.19 lbs/uom

Listings

Listings	ICC-ES-PMG 1106\|IAPMO-R&T 8358\|QAI P321-5\|IAPMO K-12775

Standards

Standards	ASTM E84\|NSF-14\|ASTM F2389\|CSA B137.11

Technical Data

End Size 1 [inch\|mm]	2"
End Size 2 [inch\|mm]	1"
End Type 1	Socket
End Type 2	Socket
Operating Pressure 1 [PSI]	340 psi
Operating Pressure 2 [PSI]	190 psi
Operating Pressure 3 [PSI]	100 psi
Operating Temperature 1 [°F]	73 °F
Operating Temperature 2 [°F]	140 °F
Operating Temperature 3 [°F]	180 °F
Material group	PP-RCT

Codes

Codes	CMC\|IMC\|UMC

Dimensions

A [mm / String]	63 mm/string
B [mm / String]	18.50 mm/string
C [mm / String]	43.50 mm/string
D [mm / String]	62 mm/string
E [mm / String]	31.50 mm/string
F [mm / String]	31.29 mm/string
G [mm / String]	15.65 mm/string
Equivalent length through [m]	0.853 m
Weight per UOM [kg/UOM]	0.086 kg/uom

Listings

Listings	ICC-ES-PMG 1106\|IAPMO-R&T 8358\|QAI P321-5\|IAPMO K-12775

Standards

Standards	ASTM E84\|NSF-14\|ASTM F2389\|CSA B137.11

Technical Data

End Type 1	Socket
End Type 2	Socket
Operating Pressure 1 [bar]	23.44 bar
Operating Pressure 2 [bar]	13.1 bar
Operating Pressure 3 [bar]	6.9 bar
Operating Temperature 1 [°C]	23 °C
Operating Temperature 2 [°C]	60 °C
Operating Temperature 3 [°C]	82 °C
Material group	PP-RCT
