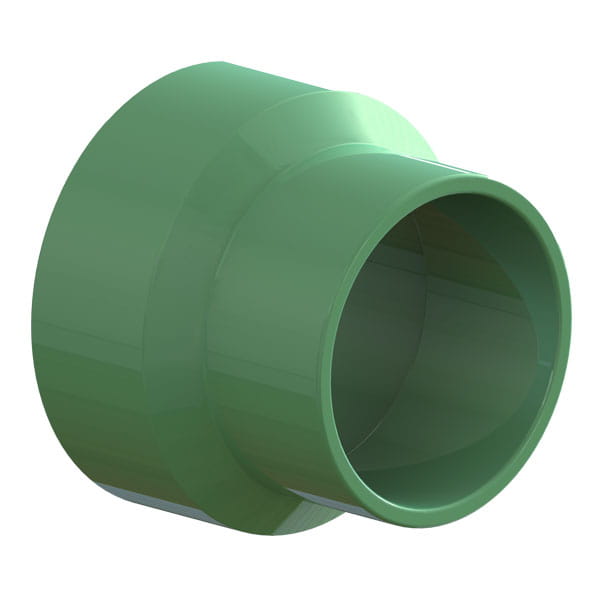

Uponor PP-RCT Reducer, 12" x 10", SDR 17.6
Número de piezaPR174771210
EstadoActivo
Encuentre un distribuidor
La disponibilidad de productos específicos varía según el distribuidor.
Información y detalles de la pieza
Codes
| Codes | CMC|IMC|UMC |
|---|
Dimensions
| A [frac] | 12 7/16 inch |
|---|---|
| A [inch] | 12.433 inch |
| B [frac] | 9 7/8 inch |
| B [inch] | 9.874 inch |
| C [frac] | 8 3/64 inch |
| C [inch] | 8.053 inch |
| Equivalent length through [ft] | 22.9 ft |
| Weight per UOM [lbs/UOM] | 4.34 lbs/uom |
Listings
| Listings | ICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775 |
|---|
Standards
| Standards | ASTM E84|NSF-14|ASTM F2389|CSA B137.11 |
|---|
Technical Data
| End Size 1 [inch|mm] | 12" |
|---|---|
| End Size 2 [inch|mm] | 10" |
| End Type 1 | Butt |
| End Type 2 | Butt |
| Operating Pressure 1 [PSI] | 130 psi |
| Operating Pressure 2 [PSI] | 70 psi |
| Operating Pressure 3 [PSI] | 50 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 140 °F |
| Operating Temperature 3 [°F] | 180 °F |
| Material group | PP-RCT |
