PR4752520

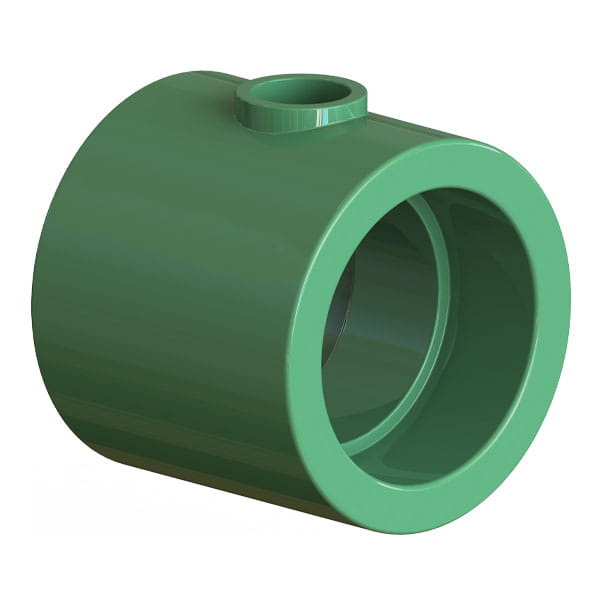

Uponor PP-RCT Reducing Tee, 2 1/2" x 2 1/2" x 2

Número de piezaPR4752520
EstadoActivo
Descargar envío

Encuentre un distribuidor

La disponibilidad de productos específicos varía según el distribuidor.

Información y detalles de la pieza

Codes

CodesCMC|IMC|UMC

Dimensions

A [frac]1 3/16 inch
A [inch]1.181 inch
B [frac]1 9/32 inch
B [inch]1.28 inch
C [frac]1 9/32 inch
C [inch]1.28 inch
D [frac]1 3/16 inch
D [inch]1.181 inch
E [frac]1 31/64 inch
E [inch]1.48 inch
F [frac]1 5/64 inch
F [inch]1.079 inch
G [frac]4 59/64 inch
G [inch]4.921 inch
H [frac]4 33/64 inch
H [inch]4.514 inch
I [frac]3 29/32 inch
I [inch]3.909 inch
J [frac]1 5/8 inch
J [inch]1.632 inch
K [frac]1 61/64 inch
K [inch]1.955 inch
Equivalent length branch [ft]8.3 ft
Equivalent length through [ft]2.1 ft
Weight per UOM [lbs/UOM]1.07 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]2-1/2"
End Size 2 [inch|mm]2-1/2"
End Size 3 [inch|mm]2"
End Type 1Socket
End Type 2Socket
End Type 3Socket
Operating Pressure 1 [PSI]340 psi
Operating Pressure 2 [PSI]190 psi
Operating Pressure 3 [PSI]100 psi
Operating Temperature 1 [°F]73 °F
Operating Temperature 2 [°F]140 °F
Operating Temperature 3 [°F]180 °F
Material groupPP-RCT
