PR4752215

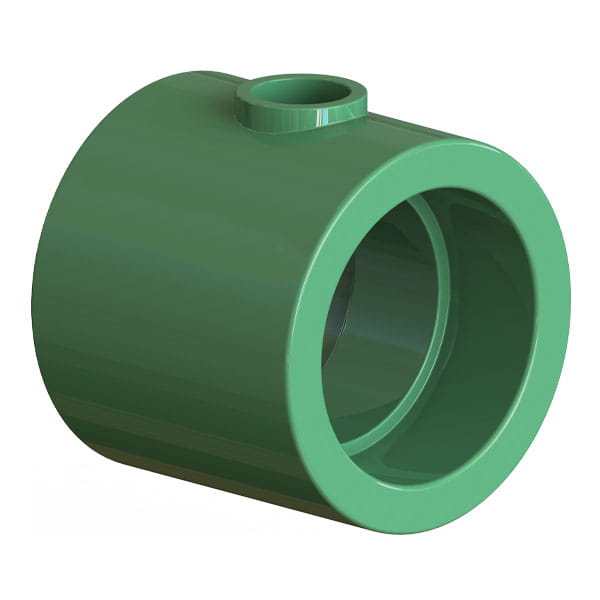

Uponor PP-RCT Reducing Tee, 2" x 2" x 1 1/2

Número de piezaPR4752215
EstadoActivo
Descargar envío

Encuentre un distribuidor

La disponibilidad de productos específicos varía según el distribuidor.

Información y detalles de la pieza

Codes

CodesCMC|IMC|UMC

Dimensions

A [frac]1 5/64 inch
A [inch]1.079 inch
B [frac]1 3/64 inch
B [inch]1.047 inch
C [frac]1 3/64 inch
C [inch]1.047 inch
D [frac]1 5/64 inch
D [inch]1.079 inch
E [frac]1 9/32 inch
E [inch]1.28 inch
F [frac]59/64 inch
F [inch]0.925 inch
G [frac]4 1/4 inch
G [inch]4.252 inch
H [frac]3 27/32 inch
H [inch]3.837 inch
I [frac]3 17/64 inch
I [inch]3.264 inch
J [frac]1 19/64 inch
J [inch]1.297 inch
K [frac]1 5/8 inch
K [inch]1.632 inch
Equivalent length branch [ft]6.6 ft
Equivalent length through [ft]1.7 ft
Weight per UOM [lbs/UOM]0.63 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775

Standards

StandardsASTM E84|NSF-14|ASTM F2389|CSA B137.11

Technical Data

End Size 1 [inch|mm]2"
End Size 2 [inch|mm]2"
End Size 3 [inch|mm]1-1/2"
End Type 1Socket
End Type 2Socket
End Type 3Socket
Operating Pressure 1 [PSI]340 psi
Operating Pressure 2 [PSI]190 psi
Operating Pressure 3 [PSI]100 psi
Operating Temperature 1 [°F]73 °F
Operating Temperature 2 [°F]140 °F
Operating Temperature 3 [°F]180 °F
Material groupPP-RCT
