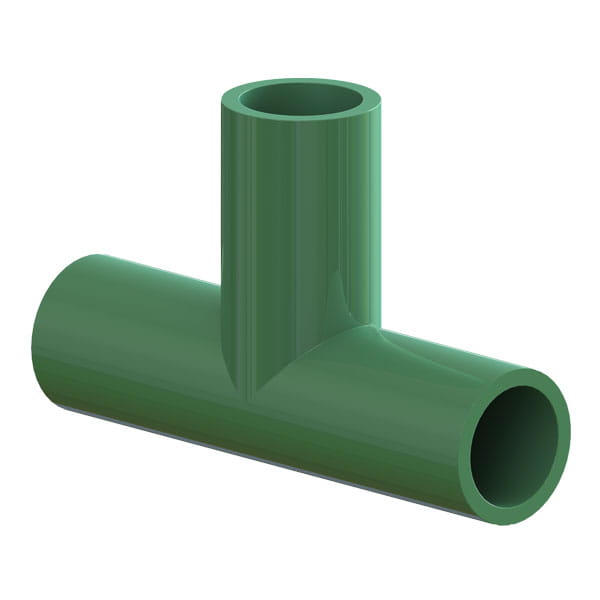

Uponor PP-RCT Tee, Mechanical, 12" x 12" x 12", SDR 17.6
Número de piezaPR17475120
EstadoActivo
Encuentre un distribuidor
La disponibilidad de productos específicos varía según el distribuidor.
Información y detalles de la pieza
Codes
| Codes | CMC|IMC|UMC |
|---|
Dimensions
| A [frac] | 19 11/16 inch |
|---|---|
| A [inch] | 19.685 inch |
| B [frac] | 19 11/16 inch |
| B [inch] | 19.685 inch |
| C [frac] | 13 31/64 inch |
| C [inch] | 13.484 inch |
| D [frac] | 19 11/16 inch |
| D [inch] | 19.685 inch |
| E [frac] | 39 3/8 inch |
| E [inch] | 39.37 inch |
| F [frac] | 25 57/64 inch |
| F [inch] | 25.886 inch |
| G [frac] | 12 13/32 inch |
| G [inch] | 12.402 inch |
| H [frac] | 12 13/32 inch |
| H [inch] | 12.402 inch |
| Equivalent length branch [ft] | 55 ft |
| Equivalent length through [ft] | 11.5 ft |
| Weight per UOM [lbs/UOM] | 48 lbs/uom |
Listings
| Listings | ICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775 |
|---|
Standards
| Standards | ASTM E84|NSF-14|ASTM F2389|CSA B137.11 |
|---|
Technical Data
| End Size 1 [inch|mm] | 12" |
|---|---|
| End Size 2 [inch|mm] | 12" |
| End Size 3 [inch|mm] | 12" |
| End Type 1 | Butt |
| End Type 2 | Butt |
| End Type 3 | Butt |
| Operating Pressure 1 [PSI] | 130 psi |
| Operating Pressure 2 [PSI] | 70 psi |
| Operating Pressure 3 [PSI] | 50 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 140 °F |
| Operating Temperature 3 [°F] | 180 °F |
