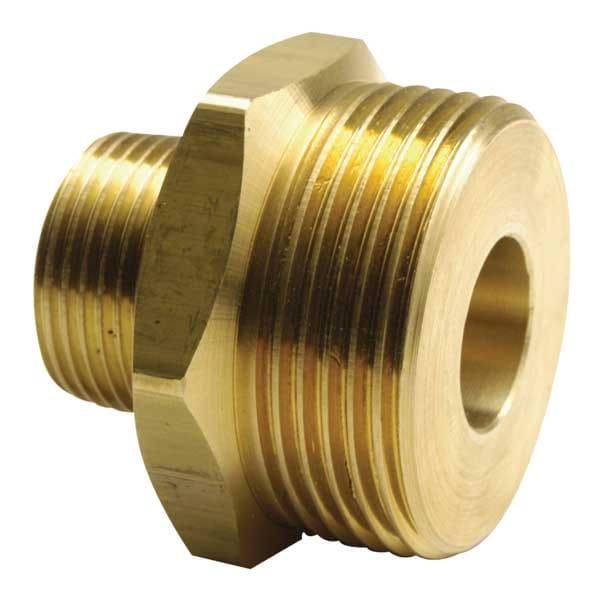

Threaded Brass Manifold Straight Adapter, R32 Male x R25 Male

Numéro de pièceA4143225
État d’avancementÉlimination progressive

Trouver un distributeur

La disponibilité de produits spécifiques varie selon le distributeur.

Informations et détails sur les pièces

Dimensions

A [frac]39/64 inch
A [inch]0.613 inch
B [frac]11/32 inch
B [inch]0.35 inch
C [frac]41/64 inch
C [inch]0.635 inch
D [frac]2 1/64 inch
D [inch]2.02 inch
E [frac]1 19/32 inch
E [inch]1.598 inch
F [frac]1 3/4 inch
F [inch]1.75 inch
G [frac]1 1/64 inch
G [inch]1.01 inch
H [frac]7/8 inch
H [inch]0.875 inch
Weight per UOM [lbs/UOM]0.5 lbs/uom

Normes

StandardsCSA B137.5|R32: ISO 228-G 1¼"|ASTM F877

Technical Data

End Size 1 [inch|mm]1-1/4"
End Size 2 [inch|mm]1"
End Type 1ISO 228-G
End Type 2ISO 228-G
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °F
Operating Temperature 2 [°F]180 °F
Operating Temperature 3 [°F]200 °F
Material groupLF Brass
Prop 65 label required?Yes
