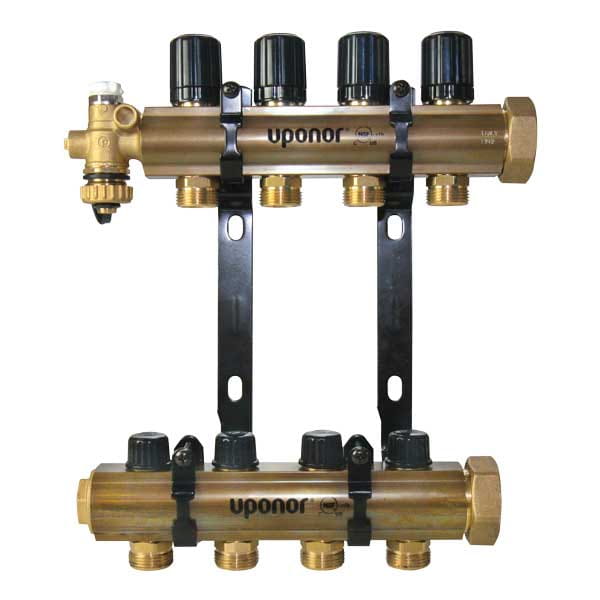

TruFLOW Jr. Assembly, B&I, 5-loop

Numéro de pièceA2660501
État d’avancementActif

Trouver un distributeur

La disponibilité de produits spécifiques varie selon le distributeur.

Informations et détails sur les pièces

Codes

CodesIMC|IRC|NBC of Canada|UMC

Dimensions

A [frac]13 3/32 inch
A [inch]13.091 inch
B [frac]12 7/32 inch
B [inch]12.214 inch
C [frac]2 29/32 inch
C [inch]2.9 inch
D [frac]1 31/32 inch
D [inch]1.969 inch
E [frac]1 63/64 inch
E [inch]1.989 inch
F [frac]1 9/32 inch
F [inch]1.285 inch
G [frac]2 1/64 inch
G [inch]2.013 inch
H [frac]5 29/32 inch
H [inch]5.906 inch
I [frac] inch
I [inch] inch
J [frac] inch
J [inch] inch
Manifold Body Size (I.D.) [inch]1 inch
Weight per UOM [lbs/UOM]12.67 lbs/uom

Listings

ListingscNSFus-rfh

Normes

StandardsCSA B137.5|R32: ISO 228-G 1¼"|ASTM F877|R20: ISO 228-G ¾"

Technical Data

Cv Branch1.9
End Size 1 [inch|mm]1-1/4"
End Size 2 [inch|mm]3/4"
End Type 1ISO 228-G
End Type 2ISO 228-G
Flow Rate Max. [gpm]14 gpm
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °F
Operating Temperature 2 [°F]180 °F
Operating Temperature 3 [°F]200 °F
Material groupBrass
Prop 65 label required?Yes
