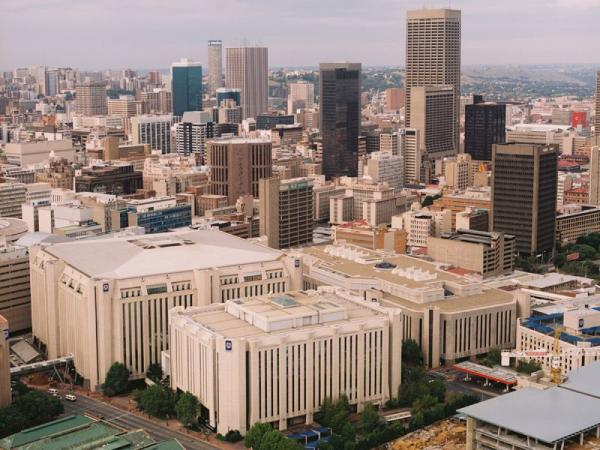

Standard Bank, Johannesburg, South Africa
Činjenice o projektu
Uponor PE-Xa pipe is known as a clean and easy installation system because of its Quick and Easy connection technology. Its long life-time and corrosion resistance were additional reasons to choose Uponor PE-Xa pipe for the refurbishment of the chilled water pipelines in the head office of South Africa's Standard Bank located in Johannesburg.The existing conventional steel piping system used for the chilled water distribution of the air conditioning system had failed after only 20 years of service. This caused damages to the vapour barrier and resulted in condensate forming on the steel pipes. The building did not need to be vacated and remained operational during the majority of the refurbishment. With conventional steel pipes this would not have been possible due to the high noise level required for cutting, grinding and welding in order to install the material. With Uponor PE-Xa pipes and Uponor Quick and Easy fittings from dim. 20 - 32 mm and the Wipex fittings from 40 - 110 mm, the installation was realised in a modern, efficient way. The installation of Uponor eval PE-Xa pipes started at the risers. The PE-Xa pipes are used to supply a network of fancoil units in the raised flooring system - just like the cables in a computer room. More than 50.000 meters of pipe and thousands of fittings were used for the entire project, resulting in a turnover of 550.000 EUR. Our partner for Uponor PE-Xa pipe in South Africa, Afripex had been working on this important project for at least 6 months and could finally close the deal in the beginning of 2004. The deliveries were completed in March 2004 and the installation was finished a few weeks later. Johannesburg is nicknamed "Egoli", meaning "place of gold". Forty percent of the world's gold has been found there. With a population of around 3.2 Mio. it is South Africa's largest city. Johannesburg had experienced a building boom in the 1960`s and 1970`s. Many of these buildings now require refurbishment and renovation, nurturing great potential for Uponor's state of the art systems in South Africa and raise the expectancy of prosperous business for Afripex in the near future.
Varicool heating and cooling panels were installed to the meeting room's ceiling. The new hydronic system replaced the old fan coil unit system. Varicool system is a radiant heating and cooling system. The panels do not heat or cool the indoor air directly but the surfaces what radiant covers.
Thermal concrete core activation with Uponor Contec provides economical, energy-efficient and sustainable building temperature control in the new landmark Adlershof Science and Technology Centre.
A hygienically optimal drinking water installation was integrated into the new office complex – thanks to Uni Pipe PLUS within a very short time.
La dalle active Uponor est intégrée depuis 2017 dans l’immeuble Delta Green, bâtiment tertiaire de 4600m2 comprenant 4 niveaux. Celui-ci est le premier bâtiment de la région tout à fait autonome en énergie.
First radiant ceiling cooling renovation project in tropical climate – Singapore
Uponor were nominated as the sole supplier for radiant heating systems for the Sunesis Schools schemes, with Main Contractor Willmott Dixon. Sunesis is a Joint Venture between Scape and Willmott Dixon, built on the combined experience of public sector know-how and private expertise. They are the market leader in delivering pre-designed buildings across a range of market sectors. Every design has a defined layout, specification, fixed cost and timescale to construct. The full benefits of a full BIM model are also utilised.
Le bâtiment d’enseignement supérieur et de recherche pour l’Institut Mines-Télécom intègre un système de dalle active sur une surface de 40 000 m2. Le bâtiment économe en énergie accueillera une gamme variée d’activités propres à l’Institut Mines - Télécom : formations, recherches, transfert et innovation.
MAGNUM – a brand new business centre. One of the largest in Kaunas city in Lithuania.
MAGNUM aims to introduce positive change, an innovative work culture, and a responsible attitude to the environment. It will inspire these aims not only in its residents, but in the city of Kaunas itself — a city that is rapidly growing and changing.
