Uponor fix wet underfloor heating installation - ideal for new residential and light commercial buildings

Fix is a clamp track system with perfectly tuned system components. Installation is possible on top of any flooring thermal and impact noise insulation. The clamp tracks can be fixed by tape or integrated pint to enable easy installation of the pipes.

“Easy and flexible system components for all types of screeds.”

Application areas:

  • Radiant underfloor heating and cooling
  • Radiant wall and ceiling heating and cooling
  • Wet installation
  • Ideal for new residential and multi family homes
  • For use with cement- and anhydrite based screed

Specification

  • Clamp tracks for pipe fixation
  • Include your local pipe types only:
  • Uponor Comfort Pipe 9.9x1.1mm, 12x1.7 mm, 20x2.0 mm
  • Uponor Comfort Pipe PLUS 14x2.0 mm, 16x2.0 mm, 17x2.0 mm, 20x2.0 mm
  • Complete accessories portfolio

Get more details on Uponor Fix underfloor heating system

Please select tabs container in properties of this section.
  • Tracks are attached to insulation of existing flooring
  • Low construction height of 15 mm with Fix for 12 mm pipes
  • Easy and flexible one-man installation
  • Cost-efficient

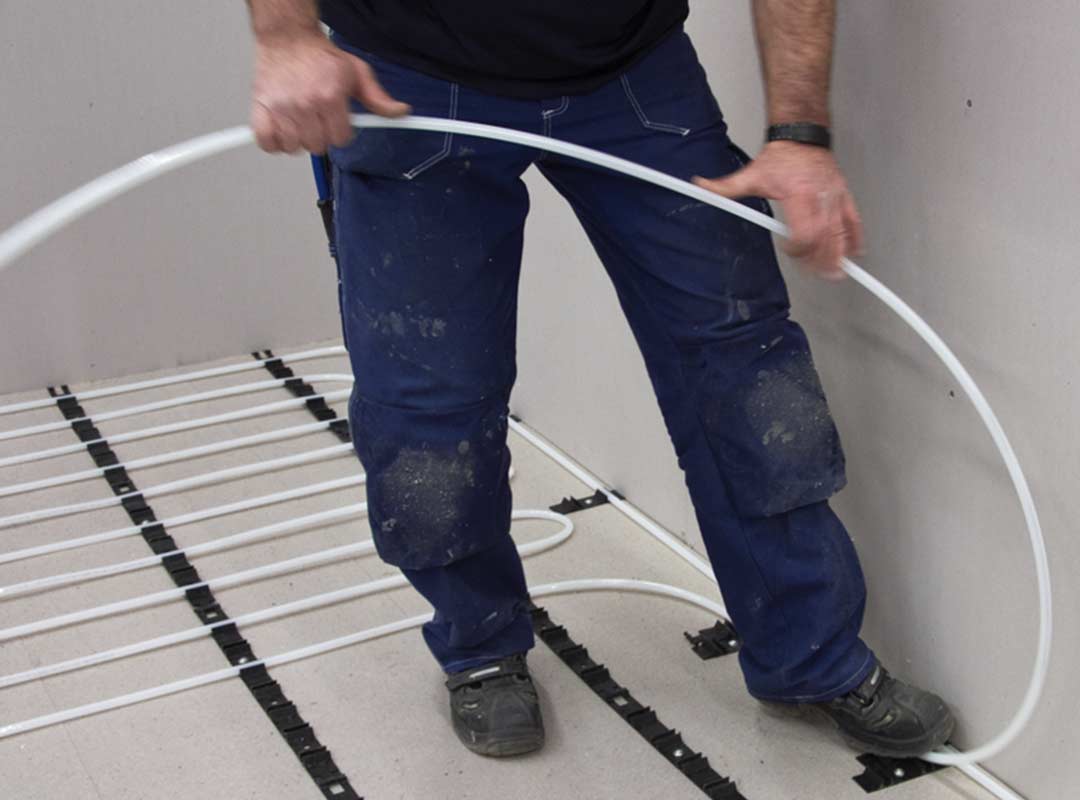

See how easy it is to install Fix wet installation system

  1. Lay PE-foil on top of existing insulation
  2. Fix the clamp tracks by tape or integrated pins on the floor
  3. Fix pipes onto the clamp tracks
  4. Ready

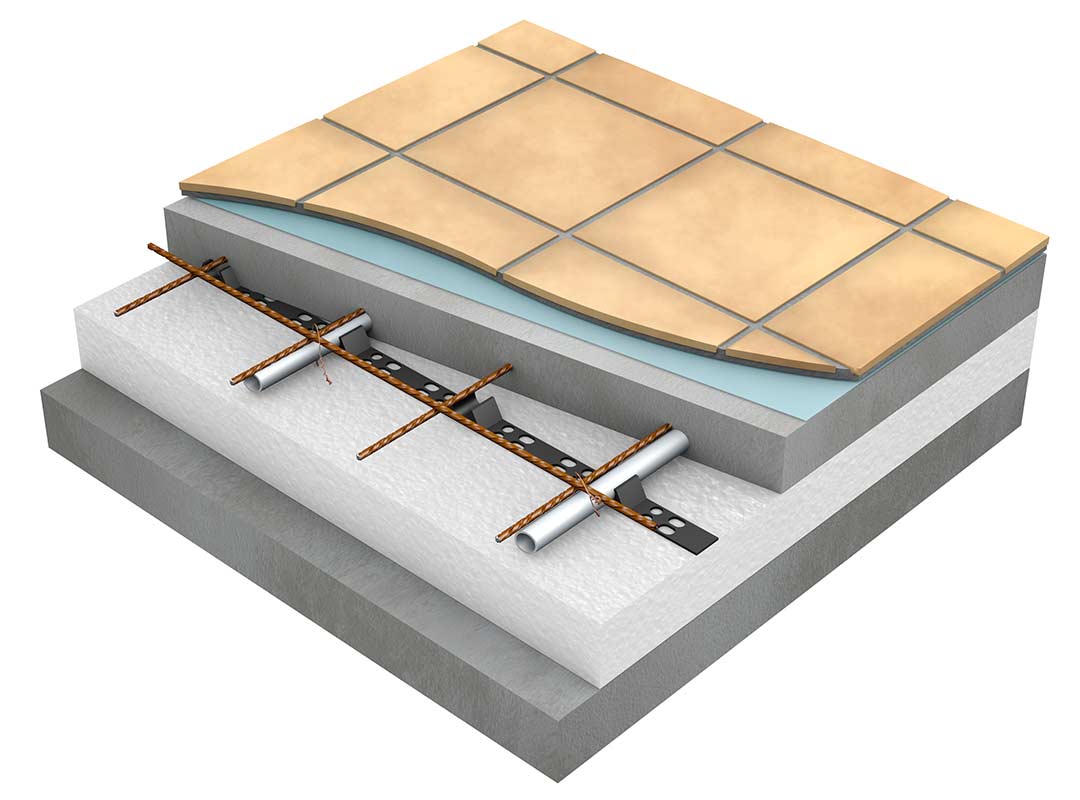

Fix on top of insulation and in concrete layer

Installation from bottom to top:
  1. Concrete floor
  2. Insulation based on local regulations
  3. PE-foil
  4. Clamp track
  5. Uponor Comfort pipe PLUS 17 x 2.0 mm or 20 x 2.0 mm, distance normally to be 300 mm for dim. 20mm and 200 mm for dim. 17 mm
  6. Steel reinforcement
  7. Levelling screed
  8. Sealing layer in bathrooms etc.
  9. Finishing layer such as tiles, marble or others

Full product portfolio for fix underfloor heating

Wide selection of different clamp tracks, PEX pipes, fixing items, compression fittings, whatever is needed for your project.

Look up or download brochures for Fix underfloor heating

Select Uponor underfloor heating and cooling wet installation system to suit your individual requirements

Underfloor heating systems in residential and commercial buildings which mainly require heating are often the first choice. And since the requirements for the design and function of an underfloor heating can differ very much, Uponor offers tailor-made solutions not only for new buildings, but also for renovation. To increase comfort, these systems can also be used to cool rooms.
