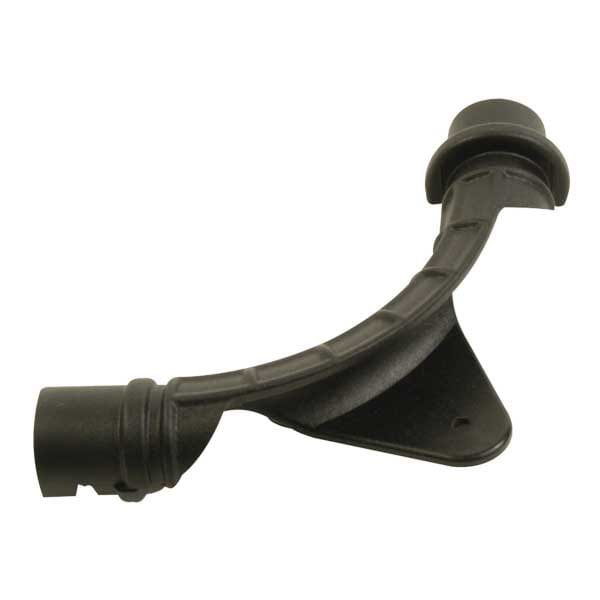

1/2" Plastic Bend Support

Part no.A5250500
StatusActive

Part information and details

Dimensions

A [frac]3 41/64 inch
A [inch]3.644 inch
B [frac]3 41/64 inch
B [inch]3.646 inch
C [frac]33/64 inch
C [inch]0.52 inch
D [frac]3 1/8 inch
D [inch]3.125 inch
E [frac]2 25/64 inch
E [inch]2.385 inch
F [frac]33/64 inch
F [inch]0.52 inch
Weight per UOM [lbs/UOM]0.05 lbs/uom

Technical Data

Material groupPlastic
Submittal Subcomponent MaterialGlass-reinforced nylon
