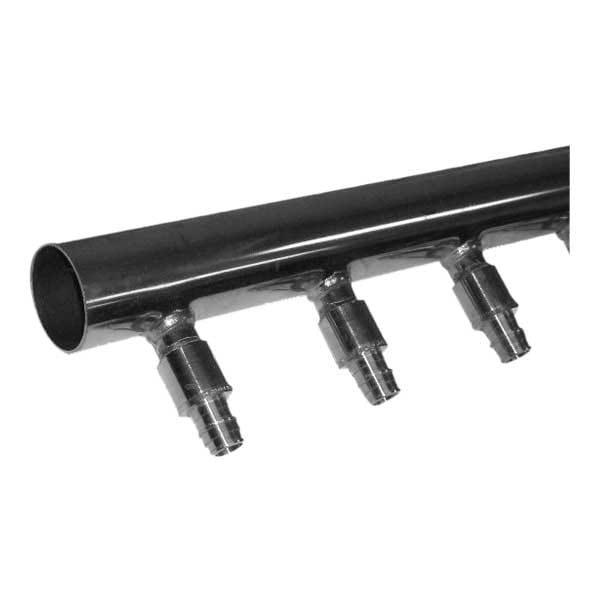

2" x 4' Copper Valveless Manifold with 3/4" ProPEX, 12 outlets
Part no.Q2831275
StatusActive
Part information and details
Dimensions
| A [frac] | 48 inch |
|---|
| A [inch] | 48 inch |
|---|
| B [frac] | 5 15/64 inch |
|---|
| B [inch] | 5.238 inch |
|---|
| C [frac] | 2 1/8 inch |
|---|
| C [inch] | 2.125 inch |
|---|
| D [frac] | inch |
|---|
| D [inch] | inch |
|---|
| Manifold Body Size (I.D.) [inch] | 2 inch |
|---|
| Weight per UOM [lbs/UOM] | 10.5 lbs/uom |
|---|
Standards
| Standards | CSA B137.5|ASTM F877 |
|---|
Technical Data
| End Size 1 [inch|mm] | 3/4" inch|mm |
|---|
| End Type 1 | ProPEX |
|---|
| Flow Rate Max. [gpm] | 45 gpm |
|---|
| Operating Pressure 1 [PSI] | 160 psi |
|---|
| Operating Pressure 2 [PSI] | 100 psi |
|---|
| Operating Pressure 3 [PSI] | 80 psi |
|---|
| Operating Pressure 4 [PSI] | 149 psi |
|---|
| Operating Temperature 1 [°F] | 73 °f |
|---|
| Operating Temperature 2 [°F] | 180 °f |
|---|
| Operating Temperature 3 [°F] | 200 °f |
|---|
| Operating Temperature 4 [°F] | 210 °f |
|---|
| Material manifold | Copper |
|---|
| Material group | Copper |
|---|
| Prop 65 label required? | Yes |
|---|
| Material Valve | Brass |
|---|
Dimensions
| A [mm / String] | 1219.20 mm/string |
|---|
| B [mm / String] | 133.05 mm/string |
|---|
| C [mm / String] | 53.98 mm/string |
|---|
| Weight per UOM [kg/UOM] | 4.7627 kg/uom |
|---|
Standards
| Standards | CSA B137.5|ASTM F877 |
|---|
Technical Data
| End Type 1 | ProPEX |
|---|
| Flow Rate Max. [m³/h] | 10.2 m³/h |
|---|
| Operating Pressure 1 [bar] | 11 bar |
|---|
| Operating Pressure 2 [bar] | 6.9 bar |
|---|
| Operating Pressure 3 [bar] | 5.5 bar |
|---|
| Operating Pressure 4 [bar] | 10.3 bar |
|---|
| Operating Temperature 1 [°C] | 23 °C |
|---|
| Operating Temperature 2 [°C] | 82 °C |
|---|
| Operating Temperature 3 [°C] | 93 °C |
|---|
| Operating Temperature 4 [°C] | 99 °C |
|---|
| Material manifold | Copper |
|---|
| Material group | Copper |
|---|
| Prop 65 label required? | Yes |
|---|
| Material Valve | Brass |
|---|
