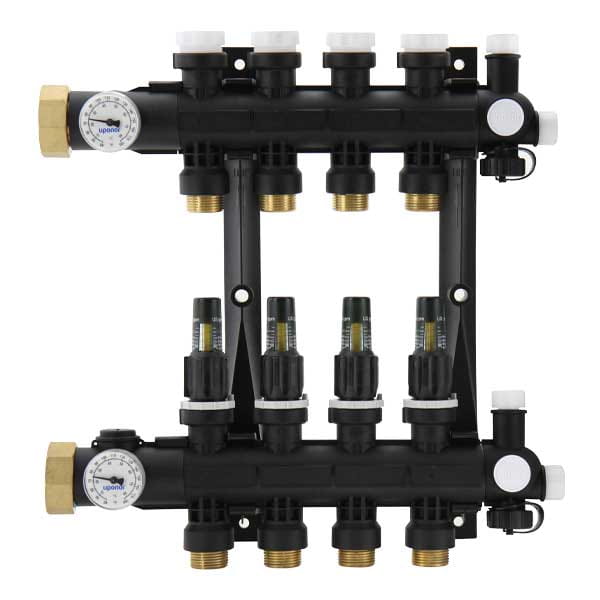

EP Heating Manifold Assembly with Flow Meter, 4-loop
Part no.A2670401
StatusActive
Find a distributor
Availability of specific products varies by distributor.
Part information and details
Dimensions
| A [frac] | 13 13/16 inch |
|---|---|
| A [inch] | 13.817 inch |
| B [frac] | 14 3/16 inch |
| B [inch] | 14.184 inch |
| C [frac] | 3 7/64 inch |
| C [inch] | 3.11 inch |
| D [frac] | 1 31/32 inch |
| D [inch] | 1.969 inch |
| E [frac] | 4 25/64 inch |
| E [inch] | 4.39 inch |
| F [frac] | 1 3/16 inch |
| F [inch] | 1.181 inch |
| G [frac] | 1 13/16 inch |
| G [inch] | 1.811 inch |
| H [frac] | 5 29/32 inch |
| H [inch] | 5.906 inch |
| Weight per UOM [lbs/UOM] | 4.82 lbs/uom |
Technical Data
| Material axel | Stainless Steel |
|---|---|
| Cv Branch | 1.4 |
| End Size 1 [inch|mm] | 1-1/4" |
| End Size 2 [inch|mm] | 3/4" |
| End Type 1 | ISO 228-G |
| End Type 2 | ISO 228-G |
| Flow Rate Max. [gpm] | 15.4 gpm |
| Material Gasket | IT-C |
| Operating Pressure 1 [PSI] | 87 psi |
| Operating Pressure 2 [PSI] | 72 psi |
| Operating Pressure 3 [PSI] | 58 psi |
| Operating Pressure 4 [PSI] | 44 psi |
| Operating Temperature 1 [°F] | 140 °F |
| Operating Temperature 2 [°F] | 158 °F |
| Operating Temperature 3 [°F] | 176 °F |
| Operating Temperature 4 [°F] | 194 °F |
| Material manifold | PA66-GF30 |
| Material group | Engineered Polymer |
| Operating temperature max. [°F] | 60 °f |
| Operating temperature min. [°F] | 45 °f |
| Material o-ring | EPDM |
| Material spring | Stainless Steel |
| Test pressure air max. [psi] | 101.5 psi |
| Test pressure water max. [psi] | 145 psi |
| Prop 65 label required? | Yes |
| Submittal Subcomponent Material | Manifold: PA66-GF30 Valve Insert, Handwheels: POM Metal Inserts: Brass C38500 Axel: Stainless Steel Spring: Stainless Steel O-ring: EPDM |
